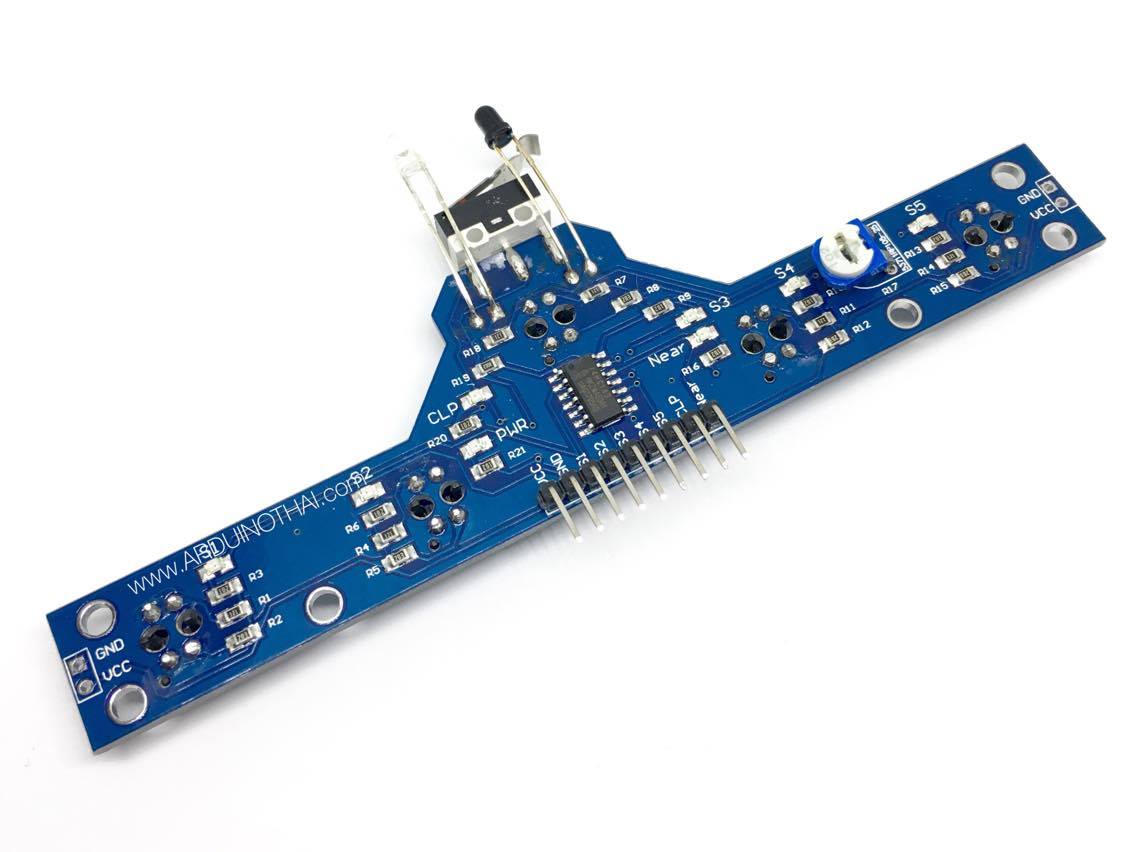

7 Ch Sensor เป็นโมดูลตรวจจับเส้น ขาว/ดำ 5 จุด พร้อมไมโครสวิตช์เซนเซอร์ตรวจจับการชนด้านหน้า 1 จุด และเซนเซอร์อินฟาเรดตรวจจับวัตถุกีดขวางอีก 1 จุด ให้สัญญาณเป็นแบบดิจิตอล พร้อมไฟแสดงผลของเซนเซอร์แต่ละจุด ใช้ไฟเลี้ยง 3.3-5V

When you find this tracking module, congratulations, you've found most cost-effective and most versatile a tracking module.

Our tracking robot to want to make friends and cordial to a cost-effective, multi-tracking module, which is sufficient to meet the daily tracking tasks, but also with an infrared distance sensor, touch sensor, It allows you to design robots able to adapt to more situations.

specifically designed for black (white) Seek the line, especially for complex black and white lines, black and white lines crossing detection, it has an infrared sensor 6 channel high sensitivity (5-way transmission line, 1 shield barrier), be able to accurately identify black and white lines, it has the following functions and features:

• Integrated 5-way high-sensitivity sensor tracking for small environmental impact, can accurately complex black line (white line) track, for a simple black line tracing more ease. Black output low, white line output high.
• Integration is way infrared obstacle avoidance sensors, obstacle avoidance distance can be adjusted by adjusting the rheostat (0-10CM), there are obstacles to output the high level thereof.
• specially designed to integrate a touch sensor, making the design and from the robot easier.
• The module outputs are all high-low signal , convenient and connected to the microcontroller.
• All sensor outputs have LED status lights as an indicator for easy debugging.
• Working voltage 3.0-5.5v meet the needs of most systems.

Select reason:

• Reasonable integrated seven sensors, super cost
• The rational layout of the sensor on a module, do not need to connect more Dupont line, keep your design simple and generous, reducing the chance of error range, when troubleshooting error can be more quickly find errors, saving time, effort .
• High-quality service to ensure that you will be able to correctly use the module, excellent routines you need to make sure you can work with this module .

Technical Parameters:

• Input voltage: 3.0-5.5V
• Traction distance: 0-3 cm (black and white line sensor)
• Barrier distance: 0-6 cm (adjustable distance detection)
• Output Type: high-low signal
