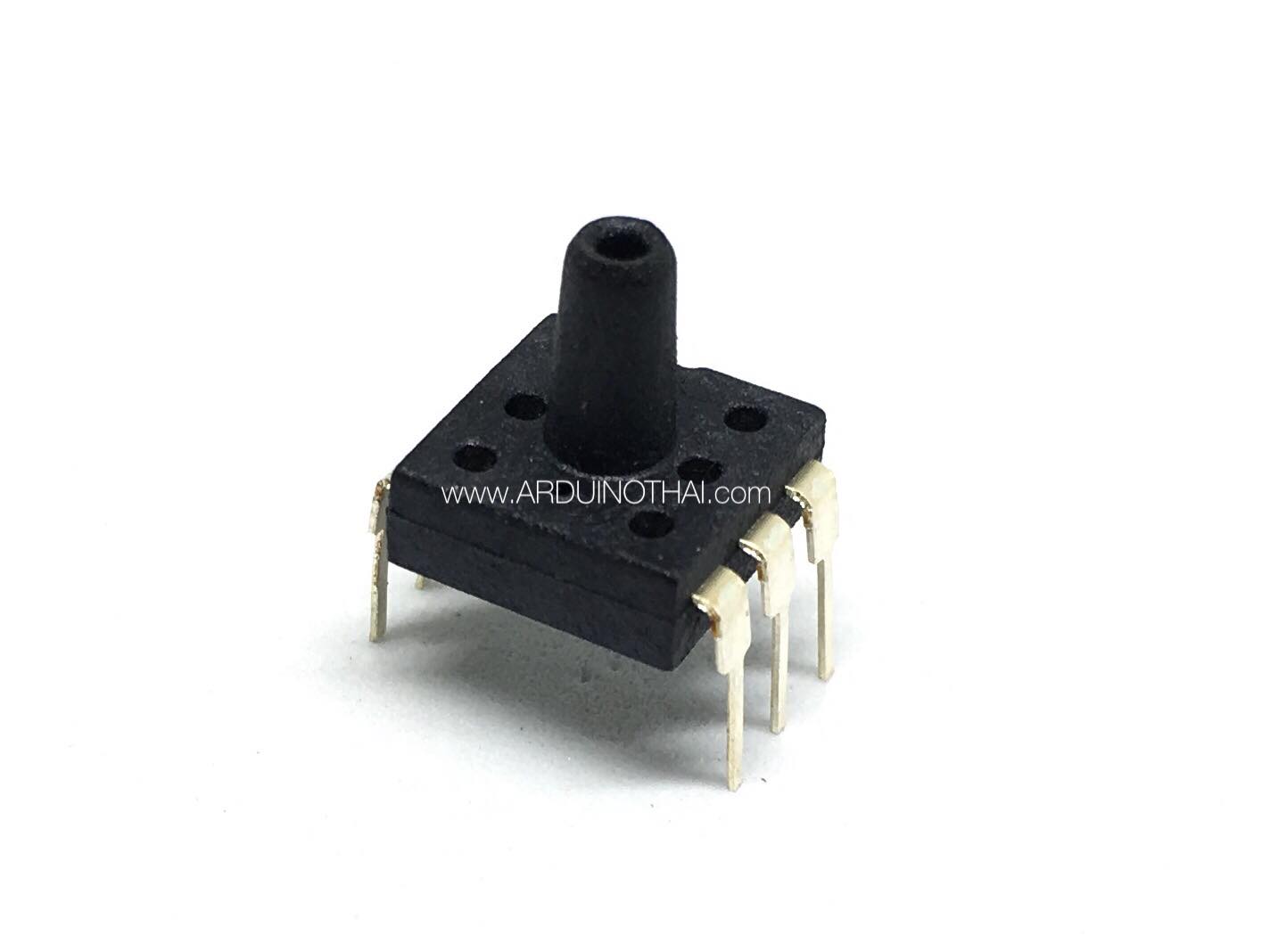

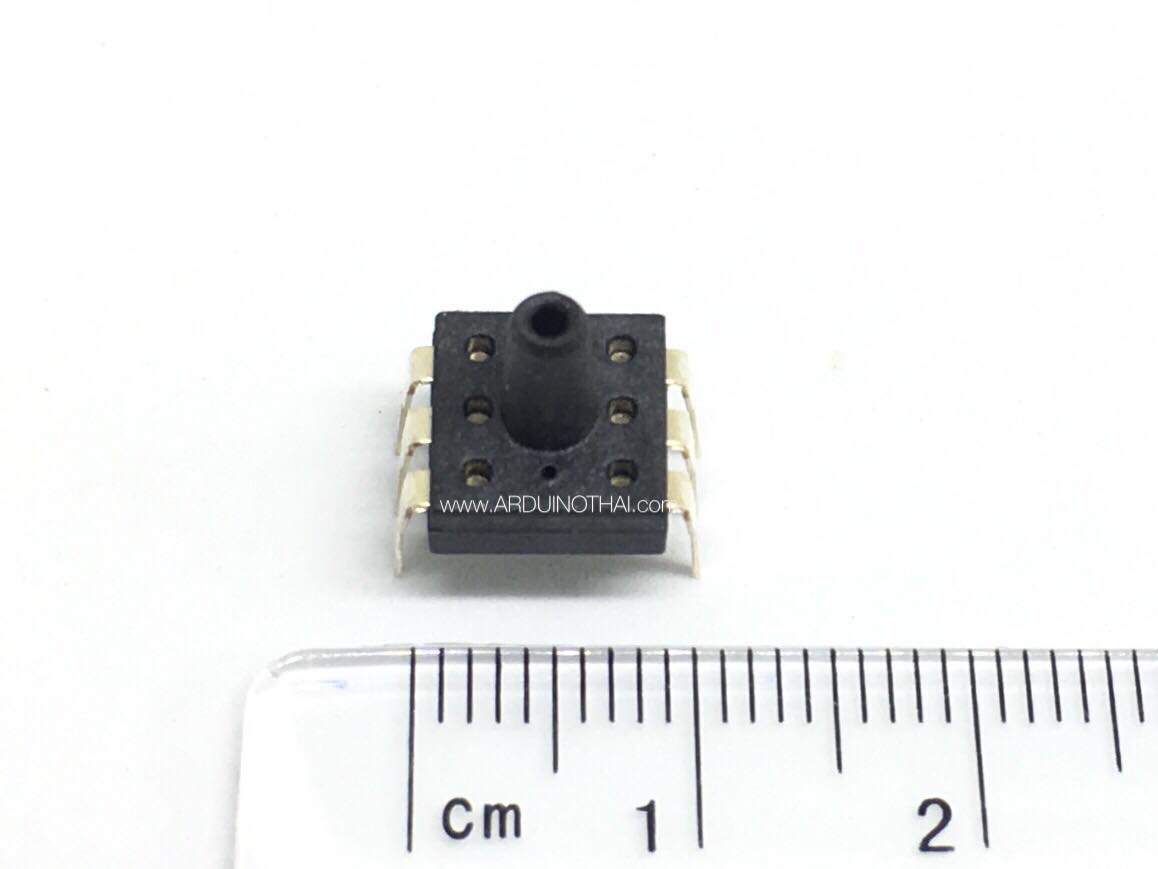

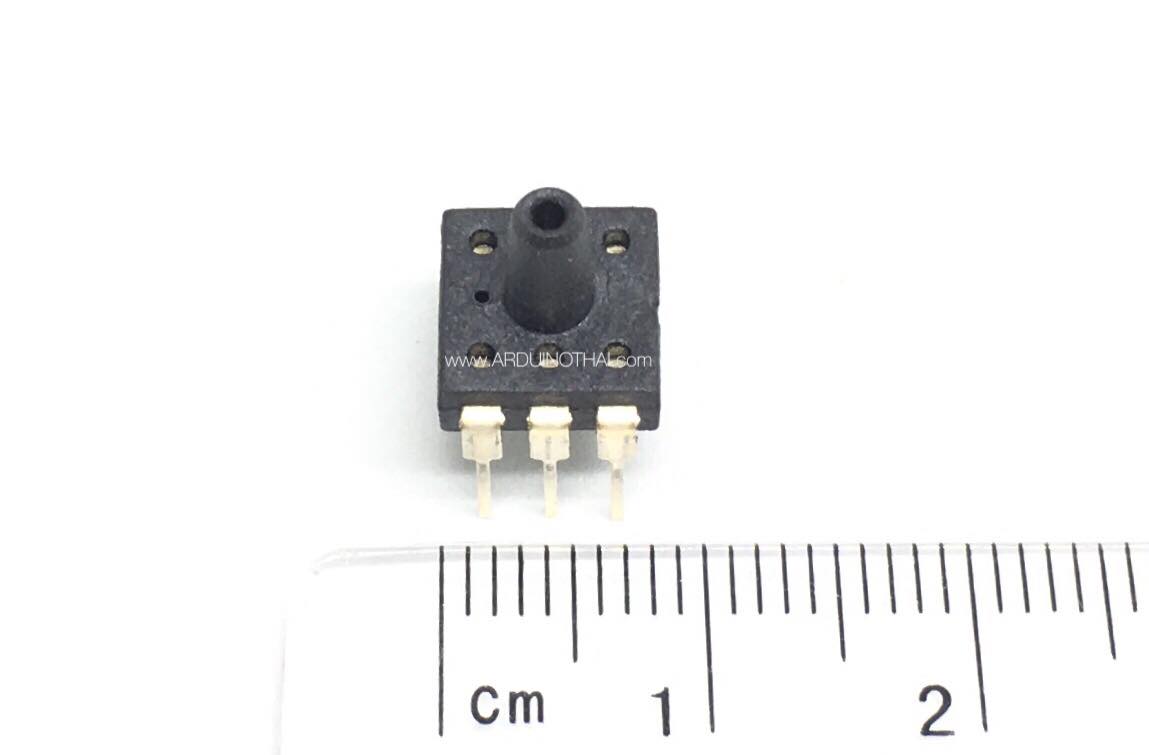

MPS20N0040D Pressure Sensor 0-40kPa DIP-6 เป็นเซนเซอร์วัดความดันอากาศ 0-40kpa Output เป็นแบบ analog วัดความดันอากาศได้  0-40kpa เซนเซอร์เชื่อมต่อกับท่อขนาด 2-2.5mm ใช้ไฟเลี้ยง 3.3-5V

MPS20N0040D Series Compression Resistant Transformer Series is a state of the art Monolithic silicone pressure sensor designed for a wide range of applications, But especially those who use a microcontroller or microprocessor with A / D The input. The patented single-component transducer combines the advanced Micromachining techniques, thin metallization, and bipolar processing for Provides precise, high-level analog output signal to match Applied pressure.

Features :

• Solid, MEMS technology, high reliability
• Low cost
• Wide monitoring and control media
• The application of a wide temperature range
• Easy to use, choose from a variety of range. Easy to use, easy to install in OEM equipment
• Application areas:
• Automotive: tire pressure, car air pump, MAP sensor, diagnostic equipment, automotive sensors.
• Industry: Air brake switch, portable pressure gauge, such as digital pressure gauge,
• environmental monitoring, consumer and sports
• Health care: patient monitoring and diagnostic equipment, such as blood pressure monitors,
• medical instrumentation and monitoring
• Range: 40kpa (differential pressure)
• Output: mV signal
• Electricity supply: 5VDC or constant current 1Ma
• Linear accuracy: 0.25% FS

• Measure the pressure range of 580 PSIG, 40KPaG
  Max pressure capacity of three times the measuring range
  Work power supply 5 VDC,
  Input impedance of 4 - 6 KΩ
  The output impedance of 4 - 6 KΩ
  Operating temperature -40 - 85 ° C -40 ° F - +185 ° F
  Storage Temperature -40 - 125 ° C -40 ° the F - +257 ° F
  Accessible media, clean, dry, non-corrosive gases
  Bias voltage ± 25 mV
  Full-scale output voltage 50 - 100 mV
  Bridge Resistance to 4 - 6 KΩ
  Linearity ± 0.3% F.S.
  Hysteresis ± 0.7% F.S.
  Bias Temperature coefficient ± 0.08% of F.S. / °c
  Temperature coefficient of sensitivity -0.21 % FS/ °c
