Dust Sensor เป็นเซนเซอร์ที่ใช้สำหรับตรวจจับควันและฝุ่นละอองในอากาศ

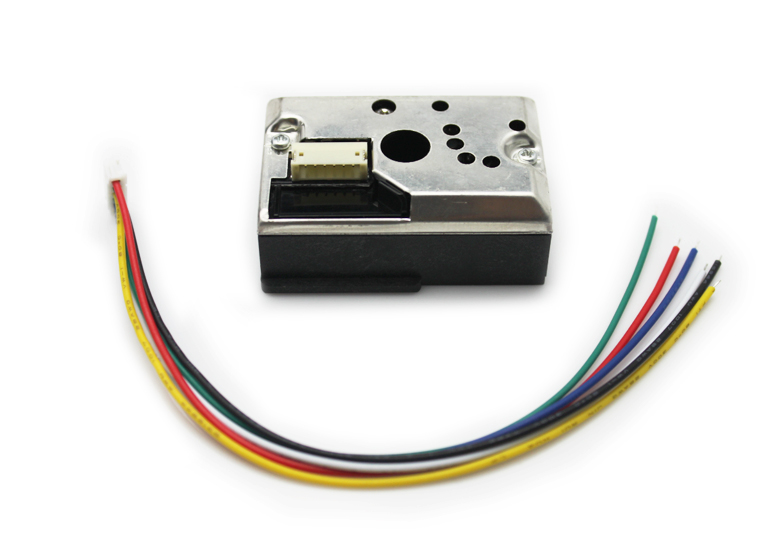

สินค้าประกอบด้วย :

Dust Sensor                   1 ตัว

สายไฟ                            1 ชุด

ตัวต้านทาน(R) 150ohm   1 ตัว

capacitor(C)  16v220uF 1 ตัว

Description:

GP2Y1010AU0F is a dust sensor by optical sensing system

An infrared emitting diode (IRED) and an phototransistor are diagonally arranged into this device

It detects the reflected light of dust in air.

Especially, it is effective to detect very fine particle like the cigarette smoke

In addition it can distinguish smoke from house dust by pulse pattern of output voltage

Compact, thin package (46.0 × 30.0 × 17.6 mm)

Low consumption current (Icc: MAX. 20 mA)

The presence of dust can be detected by the photometry of only one pulse

Enable to distinguish smoke from house dust

Lead-free and RoHS directive compliant

Compliant with RoHS directive (2002/95/EC)

ข้อมูลเพิ่มเติมและการต่อวงจร

ตัวอย่างการใช้งาน

ตัวอย่างโปรแกรม

int measurePin = 6;

int ledPower = 12;

int samplingTime = 280;

int deltaTime = 40;

int sleepTime = 9680;

float voMeasured = 0;

float calcVoltage = 0;

float dustDensity = 0;

void setup()

{

  Serial.begin(9600);

  pinMode(ledPower,OUTPUT);

}

void loop()

{

  digitalWrite(ledPower,LOW); // power on the LED

  delayMicroseconds(samplingTime);

  voMeasured = analogRead(measurePin); // read the dust value

  delayMicroseconds(deltaTime);

  digitalWrite(ledPower,HIGH); // turn the LED off

  delayMicroseconds(sleepTime);

  // 0 - 3.3V mapped to 0 - 1023 integer values

  // recover voltage

  calcVoltage = voMeasured * (3.3 / 1024);

  // linear eqaution taken from http://www.howmuchsnow.com/arduino/airquality/

  // Chris Nafis (c) 2012

  dustDensity = 0.17 * calcVoltage - 0.1;

  Serial.print("Raw Signal Value (0-1023): ");

  Serial.print(voMeasured);

  Serial.print(" - Voltage: ");

  Serial.print(calcVoltage);

  Serial.print(" - Dust Density: ");

  Serial.println(dustDensity);

  delay(1000);

}
