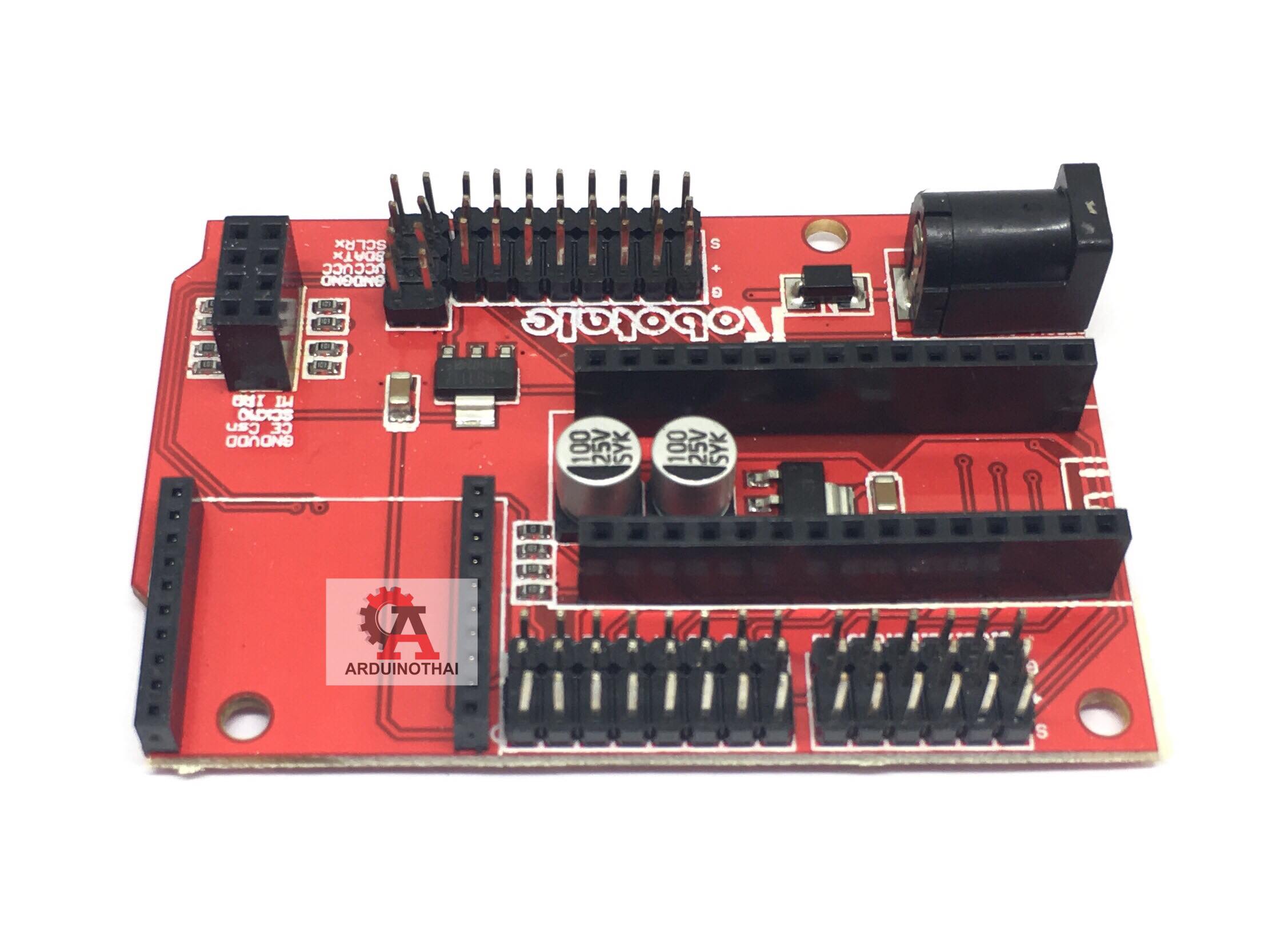

NANO expansion board สำหรับบอร์ด Arduino Nano 3.0 เป็น Shield ที่ทำให้การต่อใช้งาน NRF24L01 Xbee  หรือการต่อเชื่อมอุปกรณ์เสริมและเซนเซอร์ได้ง่ายยิ่งขึ้น

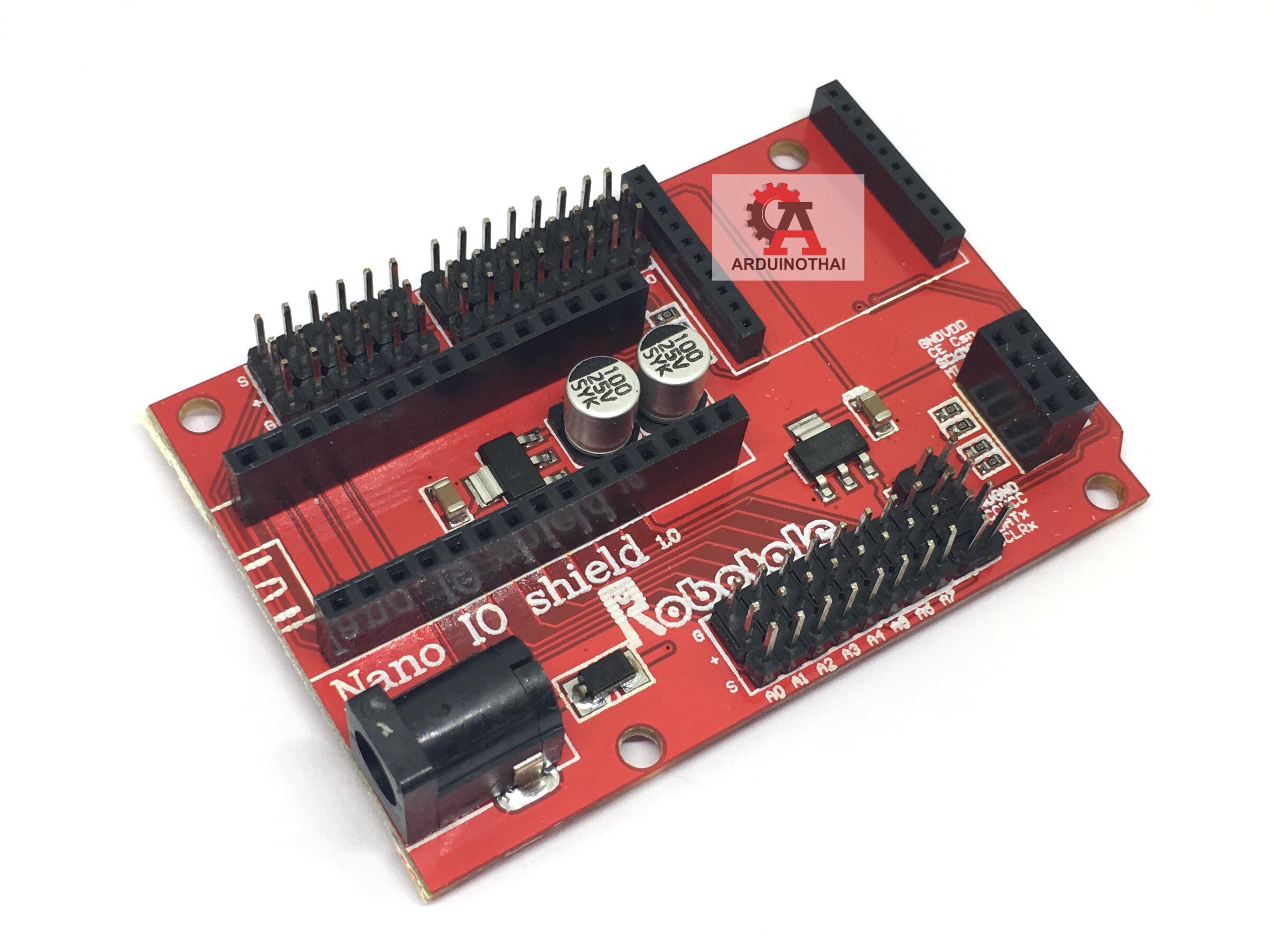

This is Nano IO Expansion Shield for Arduino NANO 328P with Xbee and Nrf24L01 adapter. It breaks out all pins as Electronic brick 3 pin interface and a nRF24L01 wireless interface. And it supports 7-12V external power supply.

This extension plate provides all IO leads to 328P for the Arduino Nano. Introduces the electronic building blocks for 3 pin/sensor interface. Provide the external power input terminals, can support external 7-12V input. With 24 l01 XBee socket and plug, expanded the Arduino Nano wireless capabilities.

Nano IO expansion board is Arduino Nano a line board. It leads to the so-called all pins with 3 pin interface as the electronic building blocks, Zigbee XBee series modules and nRF24L01 wireless interfaces. Support the power converter is 7 to 12V.

Pins :

• I/O Pin-14 I/O Pin (servo type with GND, power and signal)
• Analog Pin-8 Pins with power output and GND
• PWM Pin-6 Pins
• Expansion Pin-5 I2C Expansion Pins

You can use this module with Arduino Nano and Xbee.

Features :

• All digital and analog pins breakout
• XBee and nRF24L01+ module interface
• External power supply current support
• Compatible pin map for electronic brick

Specifications :

• Output Voltage(V) : 3.3
• Operation Level : Analog, Digital 3.3V, Digital 5V
• Length (mm) : 75
• Width (mm) : 50
• Height (mm) : 15
• Weight (gm) : 30
