Mega 2560 Pro เป็นบอร์ดที่เหมือนกับ Arduino Mega2560 ถูกออกแบบมาให้มีขนาดเล็กกระทัดรัดขึ้น เหมาะกับการลดขนาดกล่องวงจร แต่ยังมีความสามารถเท่าเดิม

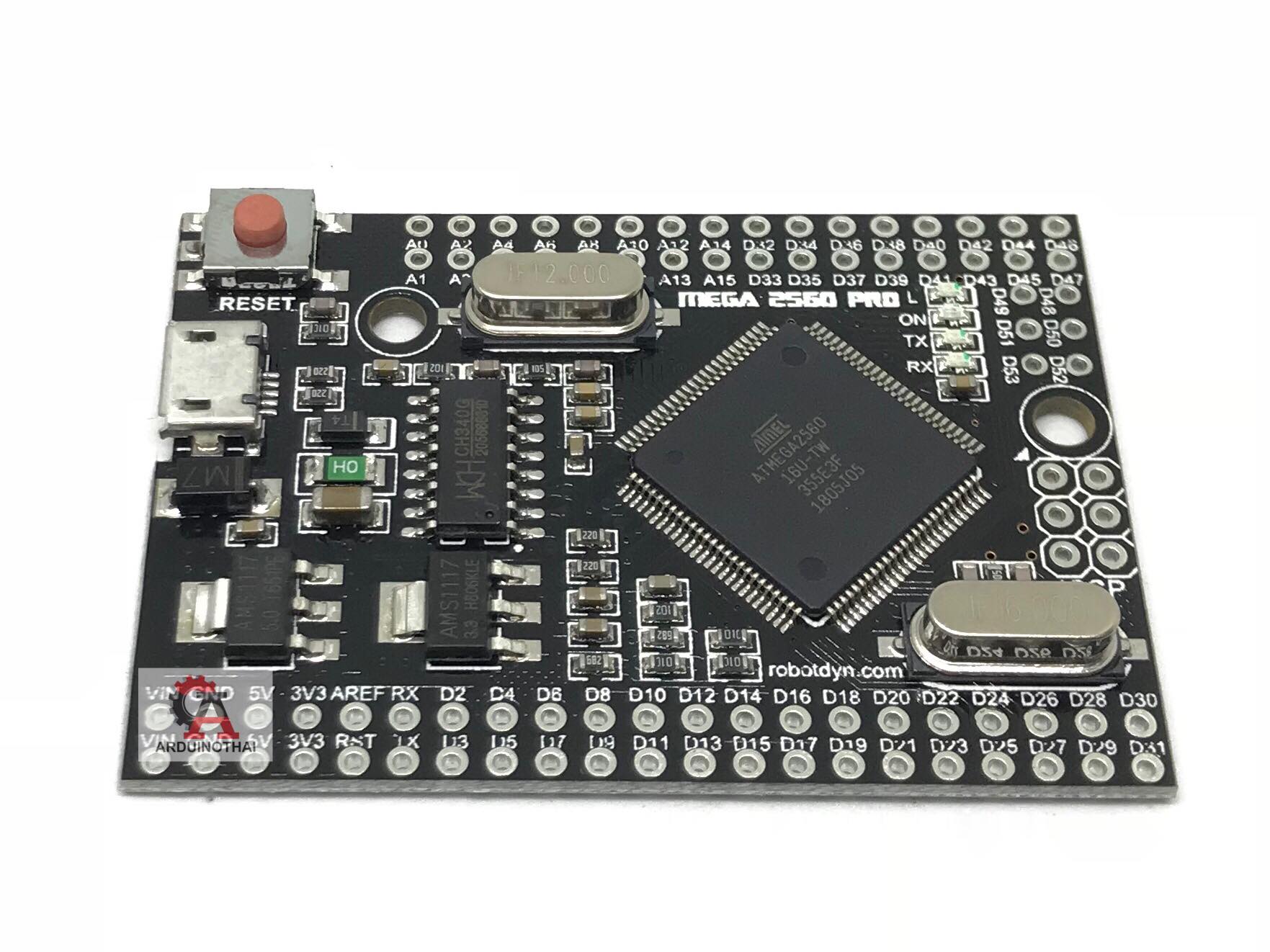

The Mega Pro Embed CH340G / ATmega2560 board is based on the ATmega2560 microcontroller and the USB-UART adapter CH340. The board is compatible with Arduino Mega 2560.

The board has a compact form factor of 38X55mm and is an excellent solution for developing projects based on ATmega2560.

The Mega Pro Embed functionalities are identical to the Arduino Mega 2560. Even though it is an Embed board, it is solid stable as the Mega Board. It uses the original chip, and a 16 MHz high-quality quartz resonators is present on the board.

The board has a Micro USB connector that allows you to connect the microcontroller to the computer via the USB-UART adapter CH340(A driver installation may be required). Download drivers:Windows,Linux,Mac,Android.

The board can be powered directly through the Micro USB connector, or via the corresponding contact on the board (Vin). The used voltage regulator operates in a range of 6 to 9V DC.

The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA.

The voltage regulator allows to use up to 18V as an input value, however we do not recommend exceeding the recommended values aforementioned, since this can lead to excessive heat and damage the device.

On the picture you can see real size of this board, compare with size of Mega Rev3:

Specifications :

Documents :

Dimensional drawing
Input and Output (I/O) diagram
Schematic
Eagle CAD library
Instruction
Drivers
