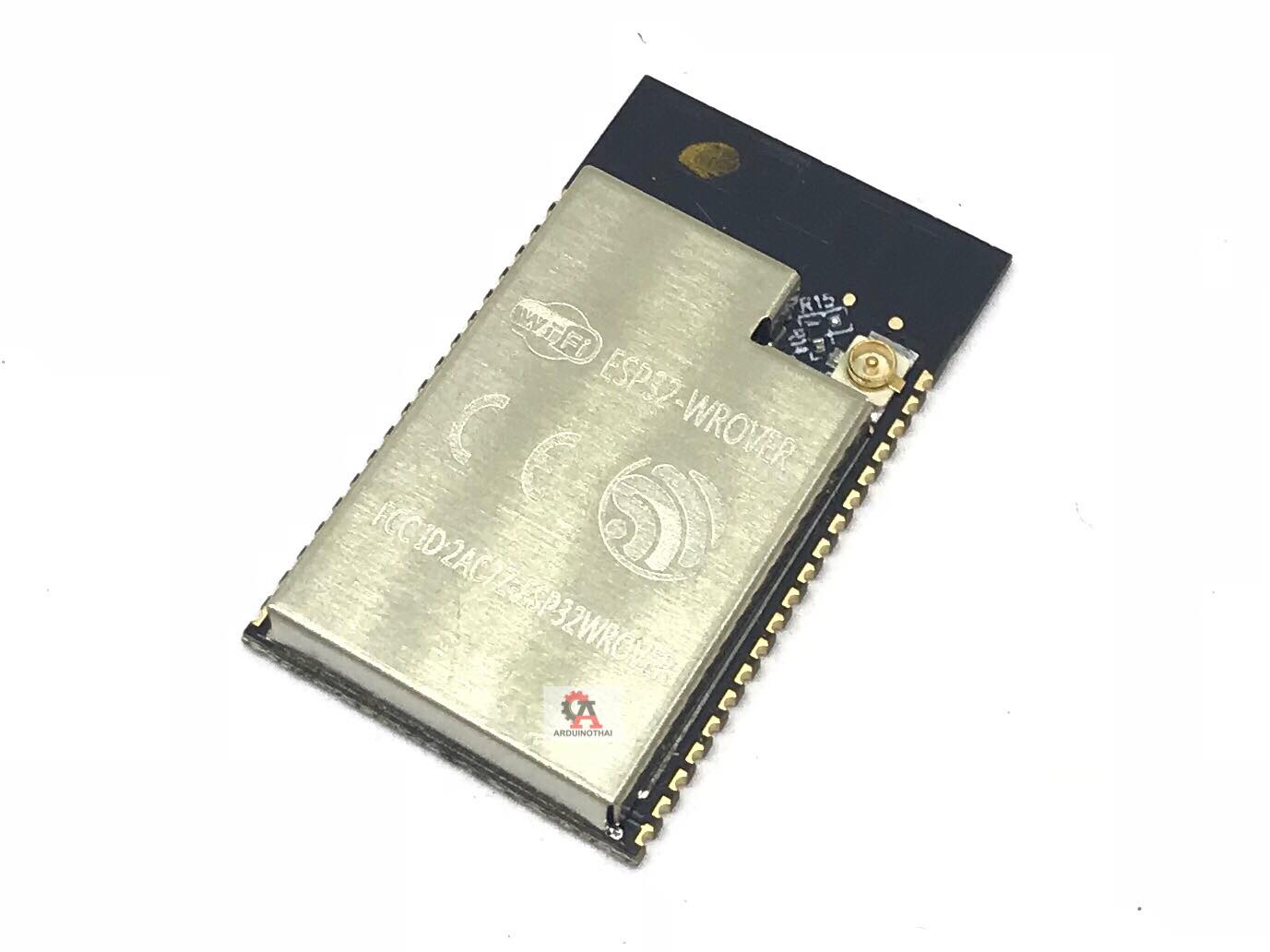

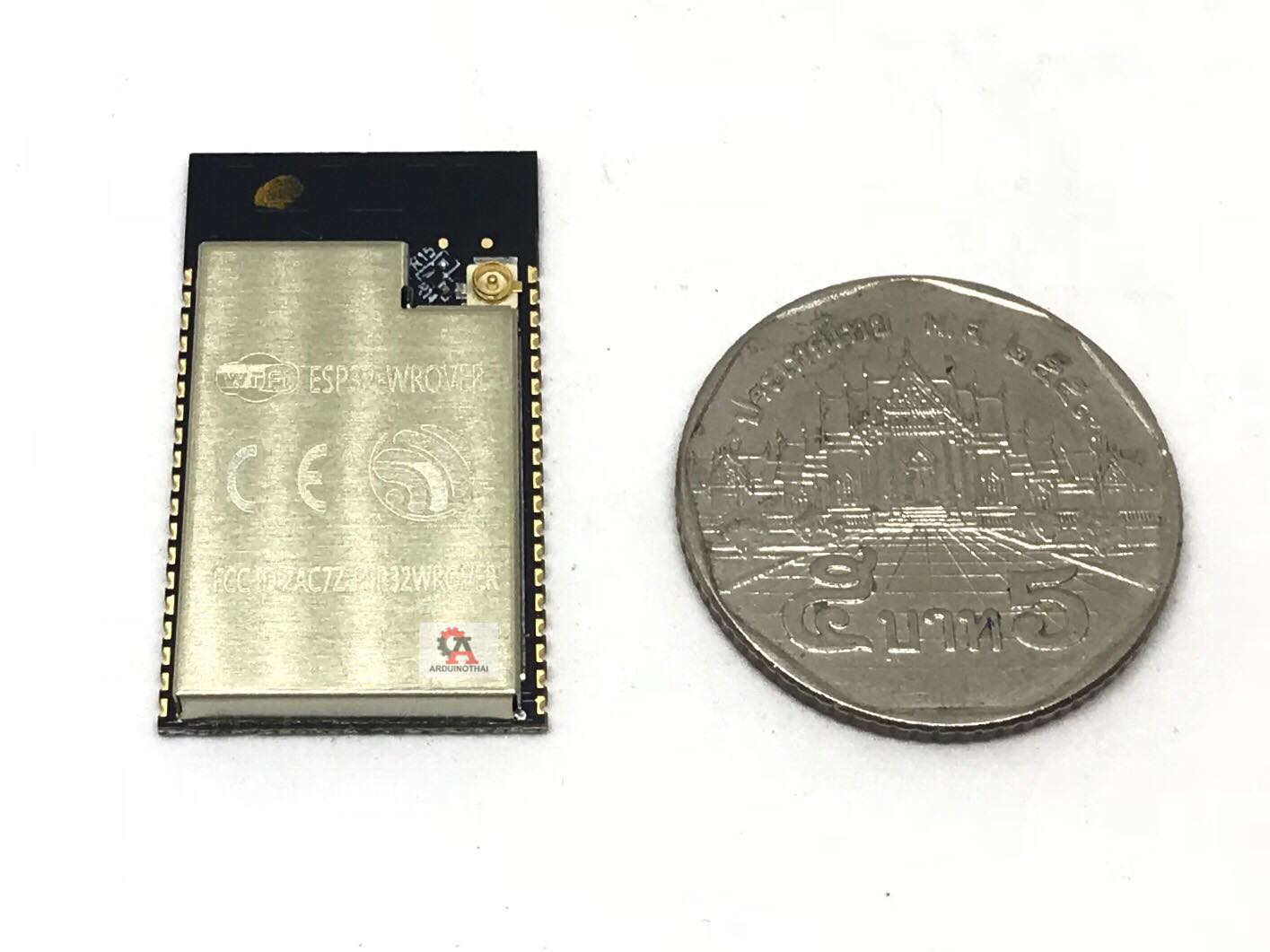

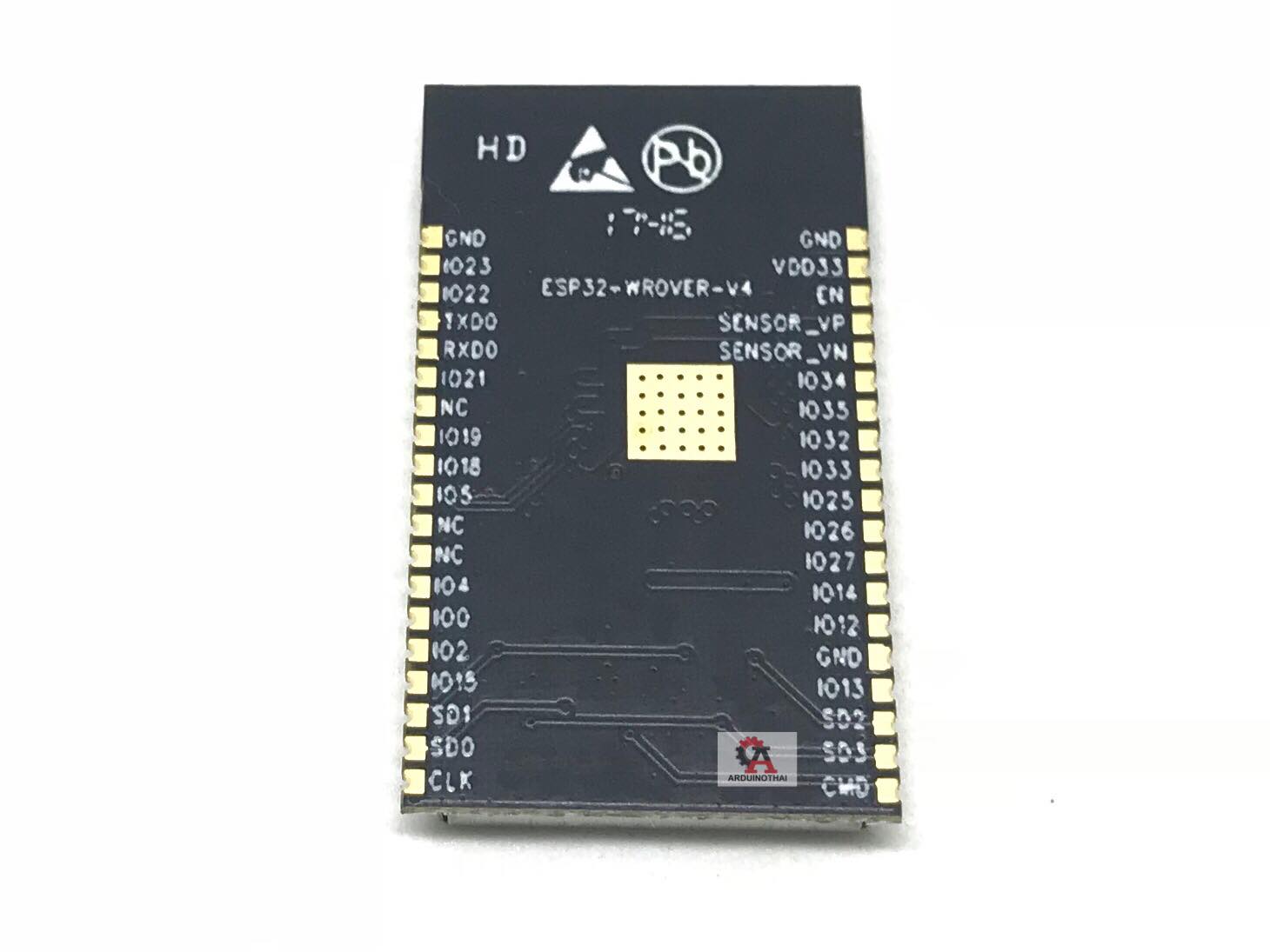

ESP32 WROVER module PCB and IPEX version

ESP32 WROVER module PCB and IPEX version
ESP32 WROVER module PCB and IPEX versionESP32 WROVER module PCB and IPEX versionESP32 WROVER module PCB and IPEX version
รหัสสินค้า AT04200
หมวดหมู่ ESP32
ราคา 250.00 บาท
ลงสินค้า 11 ส.ค. 2561
อัพเดทล่าสุด 14 ก.ค. 2564
ขออภัย สินค้าหมด
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
สินค้ารับประกัน 30 วัน
ESP32-WROVER is a powerful WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.

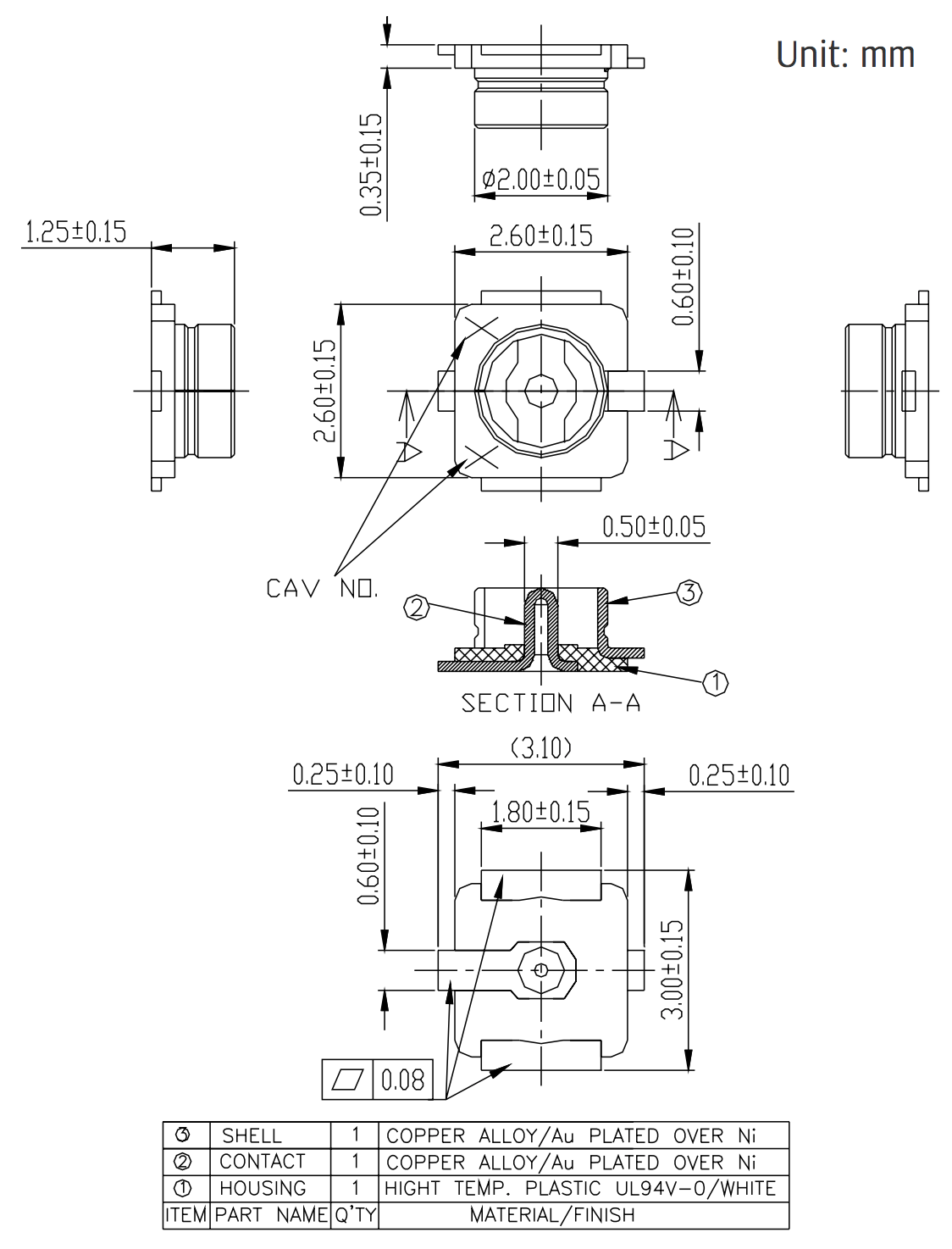

At the core of this module is the ESP32-D0WDQ6 chip, same as the ESP-WROOM-32 module. Compared to ESPWROOM-32, ESP32-WROVER has an additional SPI Pseudo static RAM (PSRAM) of 32 Mbits. As such, ESP32-WROVER features both 4 MB external SPI flash and 4 MB external PSRAM. The ESP32-WROVER module has a PCB antenna, while the ESP32-WROVER-I uses an IPEX antenna.

The chip embedded is designed to be scalable and adaptive. Two CPU cores can be individually controlled, and the clock frequency is adjustable from 80 MHz to 240 MHz.

The user may also power off the CPU and make use of the low-power co-processor to monitor the peripherals for changes or crossing of thresholds constantly. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I²S and I²C.

The integration of Bluetooth, Bluetooth LE and Wi-Fi ensures that a wide range of applications can be targeted and that the module is future proof. Using Wi-Fi allows a vast physical range and direct connection to the internet through a Wi-Fi router while using Bluetooth allows the user to conveniently connect to the phone or broadcast low energy beacons for its detection.

The sleep current of the ESP32 chip is less than 5 µA, making it suitable for battery powered and wearable electronics applications.

ESP32 supports a data rate of up to 150 Mbps, and 20.5 dBm output power at the antenna to ensure the broadest physical range. As such the chip does offer industry-leading specifications and the best performance for electronic integration, range, power consumption, and connectivity.

The operating system chosen for ESP32 is freeRTOS with LwIP; TLS 1.2 with hardware acceleration is built in as well.

Secure (encrypted) over the air (OTA) upgrade is also supported so that developers can continually upgrade their products even after their release.

Specification :
Two low-power Xtensa® 32-bit LX6 microprocessors
ESP32-D0WDQ6 Core
Supports up to four 16MB external QSPI flash and SRAM chips
32Mbits SPI flash
40MHz crystal
Onboard PCB antenna
Advanced power-management technologies
802.11 b/g/n (802.11n up to 150Mbps) Wi-Fi protocol
Bluetooth v4.2 BR/EDR and BLE
SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, and IR module interfaces
Hall sensor
2.7V to 3.6V operating voltage supply
80mA operating current
–40°C to +85°C operating temperature range
Temperature sensor

Datasheet :
