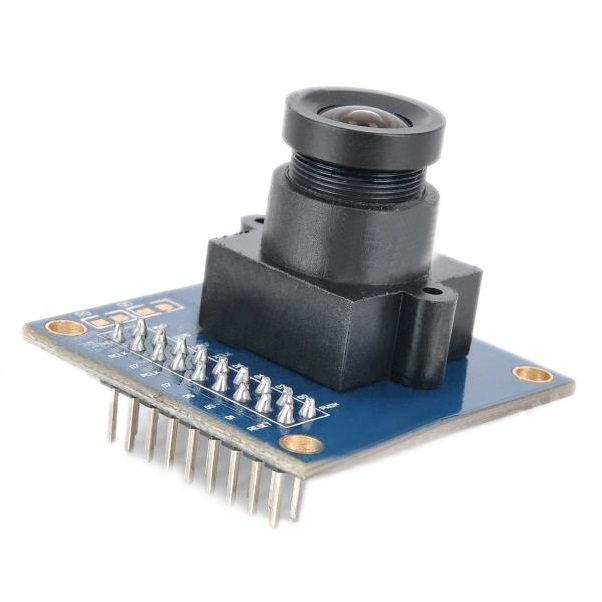

Camera Module (OV7670) โมดูลกล้องสำหรับ Arduino

OV7670 image sensor, small volume, low work voltage, providing a single piece of VGA camera and image processor all functions. Can be output by SCCB bus control, the whole frame, sampling, take the way such as window of various resolution 8 bits of data. The product VGA image to a maximum of 30 frames per second. Users can complete control of image quality, data format and transmission mode. All the process of image processing functions, including gamma curve, white balance, saturation and chroma can be through the SCCB programming interface. OmmiVision image sensor application of sensor technology, unique to reduce or eliminate the optical or electronic defect such as fixed pattern noise, tail, float away, etc., improve the quality of the image, get clear and stable color images.

Parameter:

Photosensitive array: 640X480

IO Voltage: 2.5V to 3.0V (internal LDO for nuclear power 1.8V)

Power operation: 60mW/15fpsVGAYUV

Sleep: <20μA

Temperature Operating: -30 ℃ to 70 ℃

Stable: 0 ℃ to 50 ℃

Output Formats (8): YUV/YCbCr4: 2:2 RGB565/555/444 GRB4: 2:2 Raw RGB Data

Optical size: 1/6 "

FOV: 25 °

Maximum Zhen rate: 30fps VGA

Sensitivity: 1.3V / (Lux-sec)

SNR: 46 dB

Dynamic range: 52 dB

View Mode: Progressive

Electronic Exposure: 1 line to 510 line

Pixel Size: 3.6μm x 3.6μm

Dark current: 12 mV / s at 60 ℃

Features:

High sensitivity suitable for illumination applications

Low voltage suitable for embedded applications

Standard SCCB interface compatible with I2C interface

RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format

Supports VGA, CIF, and from a variety of sizes CIF to 40x30

VarioPixel sub-sampling mode

ISP has a compensation function to eliminate noise and dead pixels

Support for image scaling

Compensation for loss of optical lens

50/60Hz automatic detection

Saturation automatically adjust (UV adjustment)

Automatically adjust edge enhancement

Automatically adjust the noise reduction

Automatically affect the control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration image quality control including color saturation, hue, gamma, sharpness

ตัวอย่างเพิ่มเติม

• ตัวอย่าง http://forum.arduino.cc/index.php?topic=125767.0
• ตัวอย่าง http://embeddedprogrammer.blogspot.com/2012/07/hacking-ov7670-camera-module-sccb-cheat.html
• ข้อมูล DataSheet
