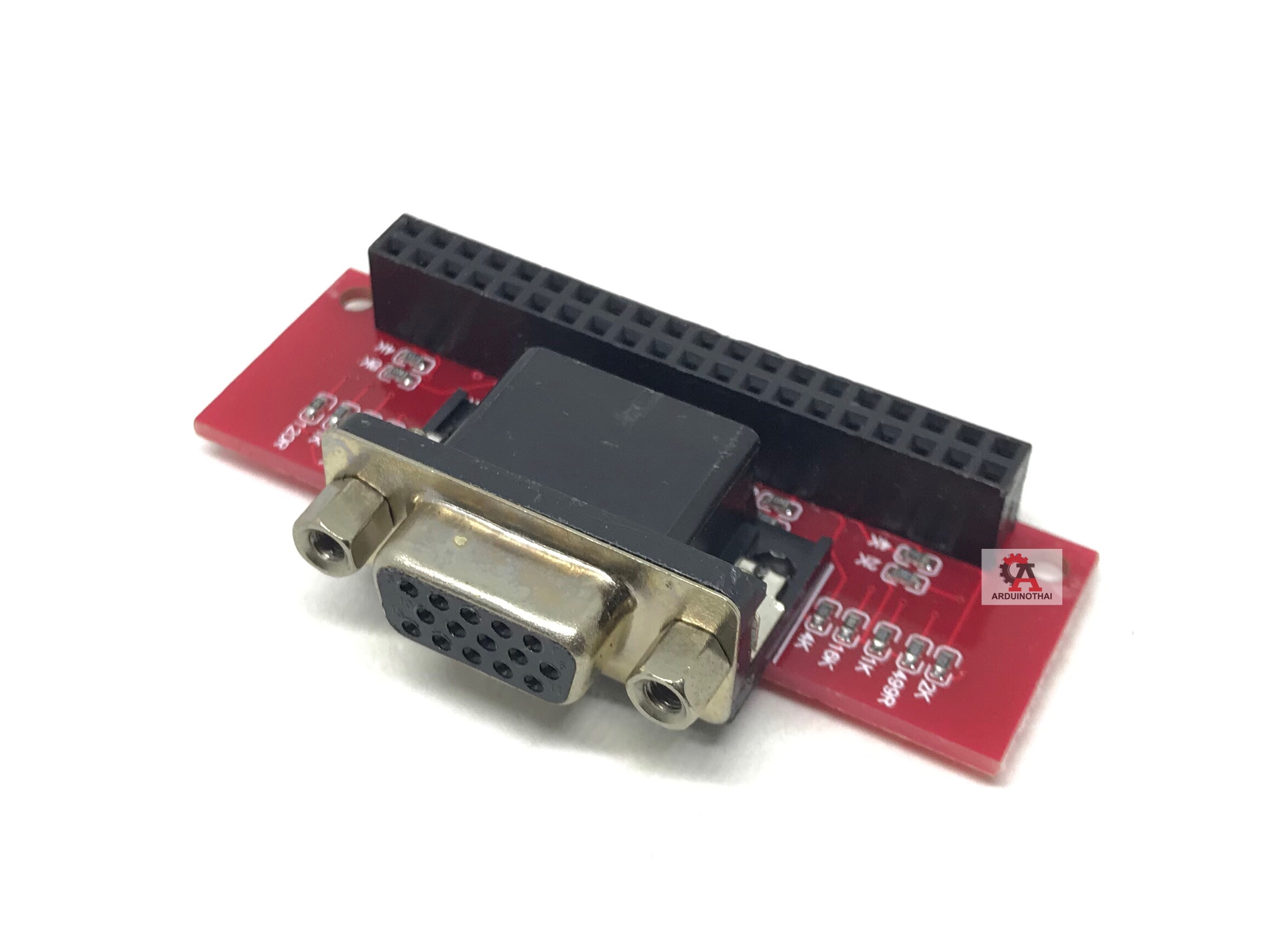

Feature :

• Support for Raspberry Pi A+, Raspberry Pi B+, Raspberry Pi Zero, Raspberry Pi 2,model B, Raspberry Pi 3 model B
• The VGA output supports resolution:from 800x600 up to 30fps.
• With 6 bits per channel you have a maximum of 262144 colours.
• Easy to setup.
• Easy to configure.
• Dimension: 64.00mm x 32.24mm
• Weight: 16.48 g

How to use it

For Raspberry Pi 4B

• Edit /boot/config.txt file with vim.tiny or other editor. and modify as following:
  framebuffer_width=800
  framebuffer_height=600
  dpi_group=2
  dpi_mode=24
  dtparam=i2c_arm=off
  dtparam=spi=off
  dtparam=uart0=off
  dtparam=uart1=off
  dtoverlay=pi3-disable-bt-overlay
  dtoverlay=vga666
  enable_dpi_lcd=1
  display_default_lcd=1
  force_pwm_open=0
  dtparam=audio=on
  start_x=1
  gpu_mem=128



For Raspberry Pi Zero/Zero W/2B/3B/3B+

• Edit /boot/config.txt file with vim.tiny or other editor. and modify as following:
  framebuffer_width=800
  framebuffer_height=600
  dpi_group=2
  dpi_mode=86
  dtparam=i2c_arm=off
  dtparam=spi=off
  dtparam=uart0=off
  dtparam=uart1=off
  dtoverlay=pi3-disable-bt-overlay
  dtoverlay=vga666
  enable_dpi_lcd=1
  display_default_lcd=1
  force_pwm_open=0
  dtparam=audio=on
  start_x=1
  gpu_mem=128
