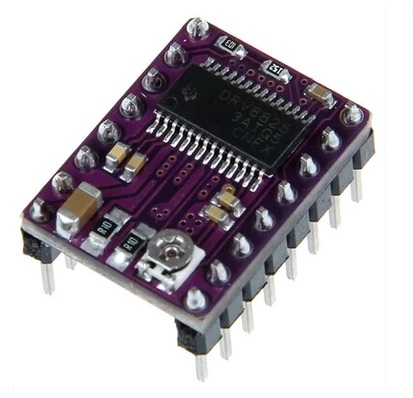

Description:

1. Maximum current of 2.5A

2. Six different step resolutions: full step , half step , 1/4-step1/8-step1/16-step, 1/32-step

3. CAN interface directly with 3.3 V and 5 V systems

4. Over-temperature thermal shutdown , overcurrent shutdown , undervoltage lockout

5. Short- to-ground short circuit load protection

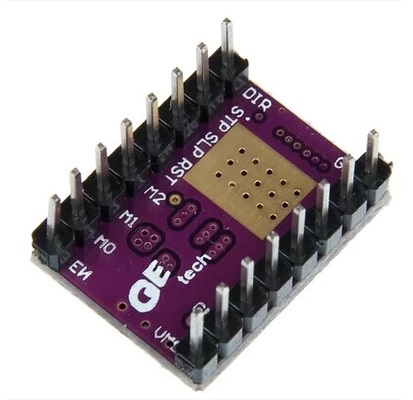

6. 4 layer 2 oz copper PCB, in order to improve heat dissipation

7. Welding the ground below the bottom exposed to the driver IC on the printed circuit board pad

8. Module size , pin and interface matching A4988 stepper motor driver operators in many ways

9. Adjustable current control lets you set a potentiometer , which lets you use the rated voltage or more 10. stepper motors to achieve a higher rate of maximum output current step

11. Intelligent chopping control automatically selects the correct current decay mode ( fast decay or slow decay )

12. Maximum 45 V supply voltage

13. The built-in voltage regulator ( the need for any external logic supply voltage )

โค้ดตัวอย่างสำหรับทดสอบ

#define EN 8

#define X_DIR 5

#define Y_DIR 6

#define Z_DIR 7

#define X_STP 2

#define Y_STP 3

#define Z_STP 4

void step (boolean dir, byte dirPin, byte stepperPin, int steps)

{

digitalWrite (dirPin, dir);

delay (50);

for (int i = 0; i

{

digitalWrite (stepperPin, HIGH);

delayMicroseconds (800);

digitalWrite (stepperPin, LOW);

delayMicroseconds (800);

}

}

void setup () // The stepper motor used in the IO pin is set to output

{

pinMode (X_DIR, OUTPUT); pinMode (X_STP, OUTPUT);

pinMode (Y_DIR, OUTPUT); pinMode (Y_STP, OUTPUT);

pinMode (Z_DIR, OUTPUT); pinMode (Z_STP, OUTPUT);

pinMode (EN, OUTPUT);

digitalWrite (EN, LOW);

}

void loop ()

{

step (false, X_DIR, X_STP, 200); // X axis motor reverse 1 ring, the 200 step is a circle.

step (false, Y_DIR, Y_STP, 200); // y axis motor reverse 1 ring, the 200 step is a circle.

step (false, Z_DIR, Z_STP, 200); // z axis motor reverse 1 ring, the 200 step is a circle.

delay (1000);

//step (true, X_DIR, X_STP, 200); // X axis motor forward 1 laps, the 200 step is a circle.

//step (true, Y_DIR, Y_STP, 200); // y axis motor forward 1 laps, the 200 step is a circle.

//step (true, Z_DIR, Z_STP, 200); // z axis motor forward 1 laps, the 200 step is a circle.

//delay (1000);

}
