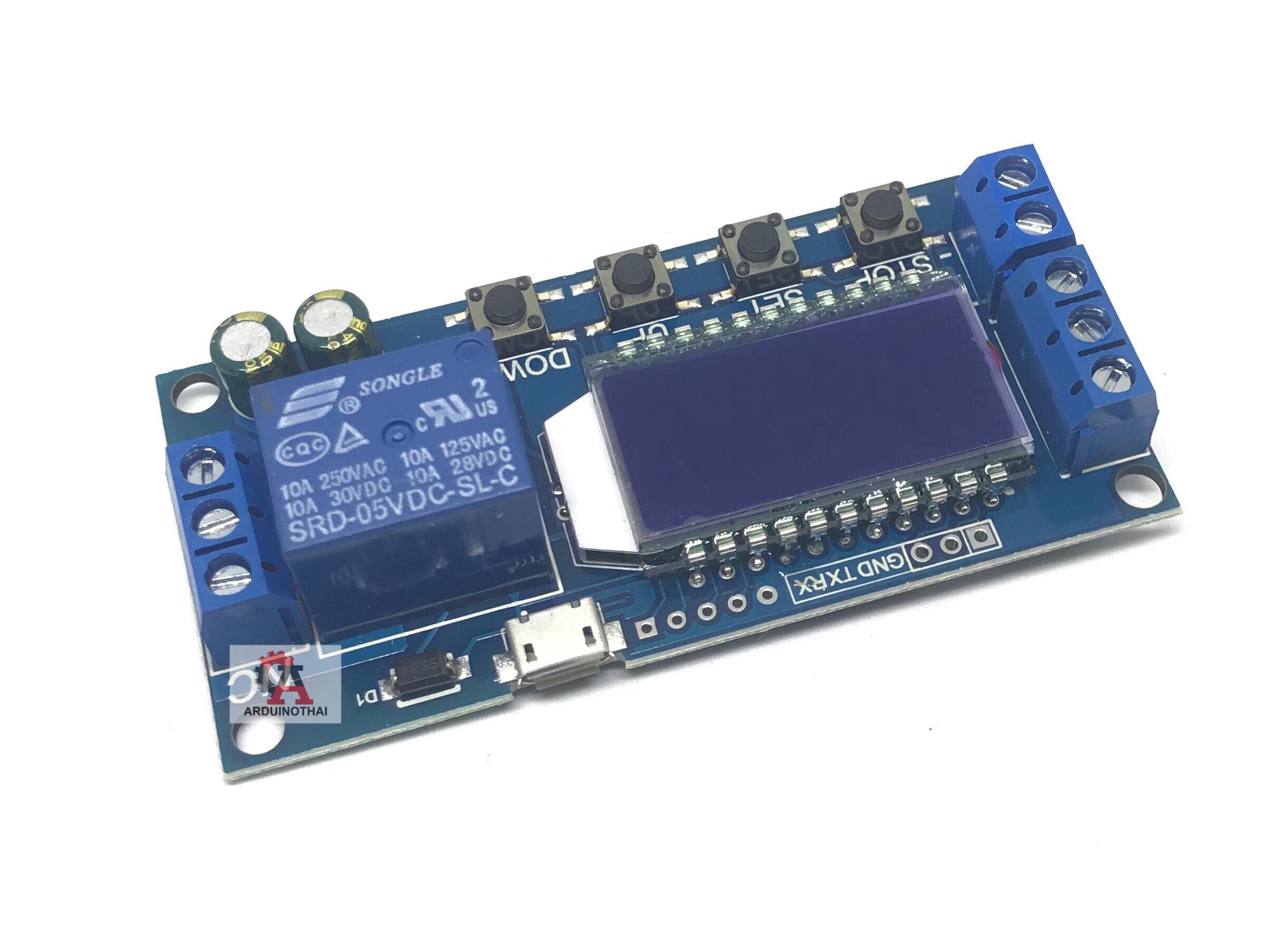

Timer Relay Delay Switch Module รีเลย์ไทม์เมอร์ พร้อมจอแสดงผล (XY-LJ02) ใช้ไฟเลี้ยง 6-30V ขับกระแสได้สูงสุด 5A สามารถตั้งเวลาได้ตั้งแต่ 0.1 วินาที - 9999 นาที

Feature :

• Working voltage: DC 6V~30V, support micro USB 5.0 V power supply
• Working current: 50mA.
• Static Current: 15mA
• Max. Output load: DC 30V 5A and AC 220V 5A.
• Trigger signal source: High level trigger (3.0V~24.0V), low level trigger (0.0V ~0.2V), switching value control (Potential free contact)
• Service life: more than 100,000 times
• Working temperature: -40-85°C

• a) Automatically hibernation function/ Low power function: In the running interface, long press STOP to open or close automatically sleep function. (L-P selects ON to start the hibernation function, and OFF turns off the hibernation function);
• b) Relay function selection: In the operation interface, shortly press STOP, the relay function is started or closed, 'ON' meets the conduction condition and the relay normally turns on, 'OFF' meets the conduction condition and the relay does not turn on; In the 'OFF' state, the system flashes 'OUT'.
• c) Parameters view: In the operation interface, short press SET to display the current parameter setting in the system, without affecting the system normal operation.
• d) Display content switching: In the P-5 P-6 mode, switch display content (runtime/cycle times) by pressing DOWN.
