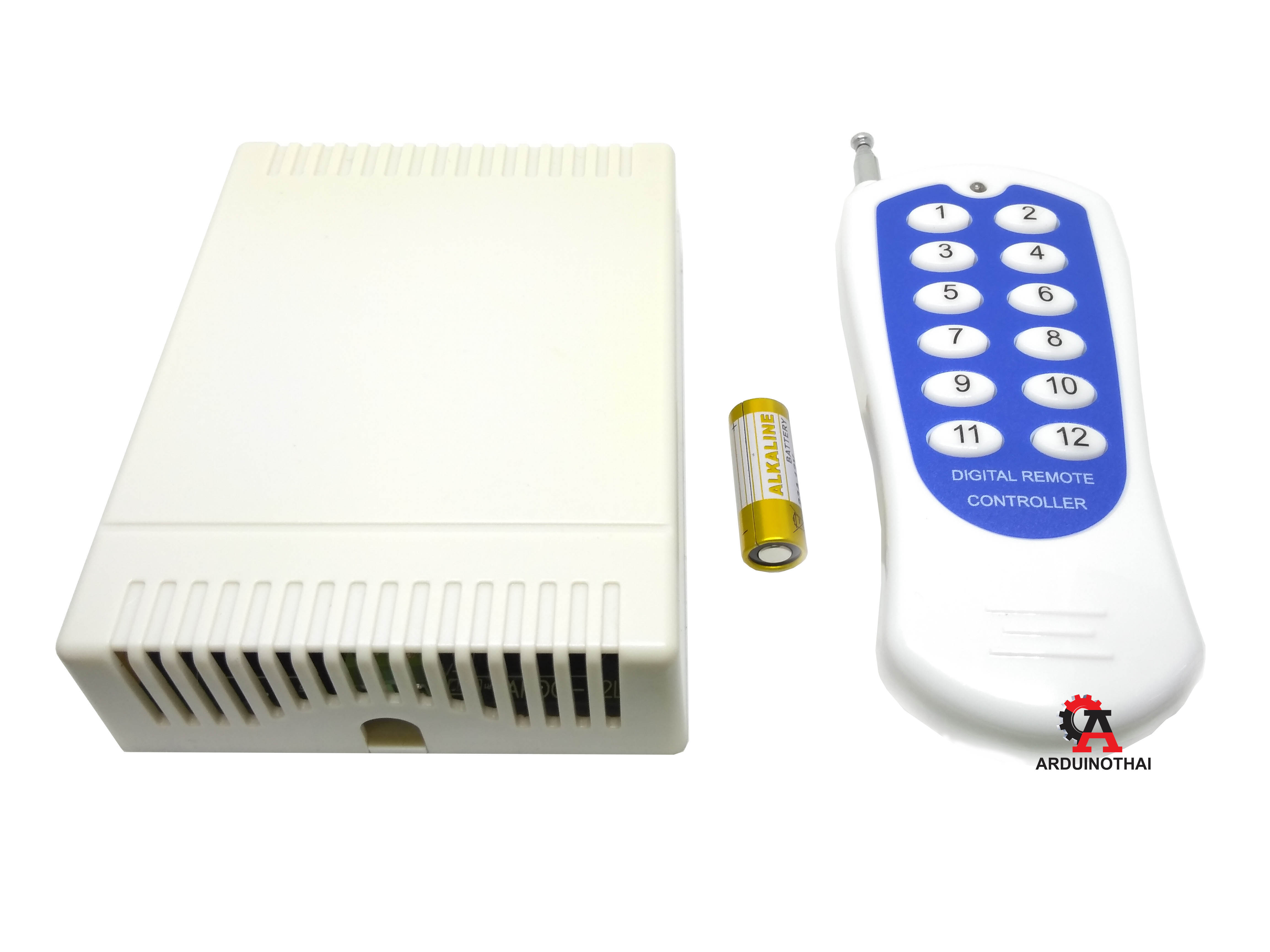

12 Channel Wireless RF Remote Control ชุดควบคุมไฟฟ้าผ่านรีโมทไร้สายแบบ Wireless สามารถควบคุมรีเลย์ขนาด 20A ได้ถึง 12 ตัว ใช้ไฟเลี้ยง 12V พร้อมใช้งาน

Description:

Radio frequency: 315MHz
Operating Voltage : 12V DC
Decode: Learning Code
Operating Type : Momentary/Toggle/Latch selectable
Relay : 20A 125VAC, 20A/14V DC
12CH Transmitter :
Radio frequency : 315 MHz
Operating Voltage : 23A 12VDC Battery
Decode : Fixed code, Soldering
Transmitting Distance : 200m

1.Transmitter

Channel: 12 CH

Remote Control Distance:0-200 M  ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)

Encode: PT2262

Frequency:315 or 433 MHz

Size: 125mm x 49mm x 20mm

Power Supply: 1 X 12V/23A Battery ( included)

2.Receiver

Power Supply (Operating Voltage): DC 12V

Relay: 20A/125V AC, 20A/14V DC

Work Voltage Range of Relay: AC 110-240V or DC 0-28V

State current: ≤6 mA

Sensitivity:-105 dBm

Operating Temperature:-20‘C - 70’C

Size:97 X 77 X 26 mm

I. Working methods

APDC-12L has 5 working modes: signal self-lock, signal interlock, signal non-lock, signal self-lock and non-lock coexist

1 , signal self-locking-press the remote control key 1 to learn

2 , the signal is not locked-press the remote control key 2 to learn

3 , signal interlock-press the remote control key 3 to learn

4 、 Signal 1 ~ 6 self-locking and 7 ~ 12 non-locking coexist-press the 4 key on the remote

5.The 1st self-locking signal and the 2 ~ 12 non-locking coexistence of the signal coexist-press the 5 key on the remote control to learn

Output method

1. Signal self-locking: Press No. 1 key on the remote control to learn

The remote control a number key, and a key number corresponding to energises relay remains, then a number key, a number of relay is switched off; the remote control 2 pound key, 2 number key corresponding to the relay holding merger, then 2 No. Key, relay No. 2 is off; keys 3 ~ 12 work in this cycle.

2 , the signal is not locked: press the remote control key 2 to learn

Press the remote controller . 1 pound key, with . 1 pound key corresponding to the relay, the relay is turned off after the let go, press 2 pound key, the 2 pound key corresponding relay, let go after disconnection; 3 to 12 keys Follow this cycle.

3 , signal interlock: press the remote control key 3 to learn

Press the No. 1 key on the remote control , the corresponding No. 1 relay is sucked and held. Press the No. 2 key, the No. 1 relay is disconnected, and the relay corresponding to the No. 2 key is sucked and held. The 3 ~ 12 keys work in this cycle.

4. Signals 1 ~ 6 self-locking and 7 ~ 12 non-locking coexist: Press the No. 4 key on the remote control to learn

Among the 12 relays corresponding to the remote control , 1 to 6 are self-locking functions, and 7 to 12 are non-locking functions.

5. The 1st self-locking signal and the 2 ~ 12 non-locking coexistence of the signal coexist: press the No. 5 key on the remote control to learn

Corresponding to the remote controller 12 relays, where the first one -way self-locking function, 2 to 12 -way non-lock function.

Note: If you want to change the receiver to other functions, please clear the receiver first and then select the required button to re-learn the code.

Learning method :

1. When the receiver is powered on, press the learning button on the receiver. The lamp will light up and let go to enter the learning state; select a key on the remote control to learn according to the function you need. The indicator light will flash after the receiver receives the signal. about 1 times (buzzer sounds) indicates success in learning.

Clear method:

When the receiver is powered on, long press the learning button on the receiver for about 8 seconds until the indicator light goes out (the buzzer sounds for about 3 seconds), indicating that the code has been successfully cleared. This receiver can store about 30 remote controls with different codes .

Fourth, the main technical indicators

1. Working voltage: 12VDC ( 5VDC , 24VDC can be customized)

2. Static current: ≤ 7mA

3. Working temperature: -20 ℃  -+ 70 ℃

4. Receiving sensitivity: ≥ -107dBm

5. Working frequency: 315MHz to 433MHz

6. Control voltage: AC or DC optional

7. Output current: ≤ 5A

8. Circuit board size: 92.6mm ⅹ 73.5mm ⅹ 18mm

9 , shell size: 100mm ⅹ 80mm ⅹ 28mm
