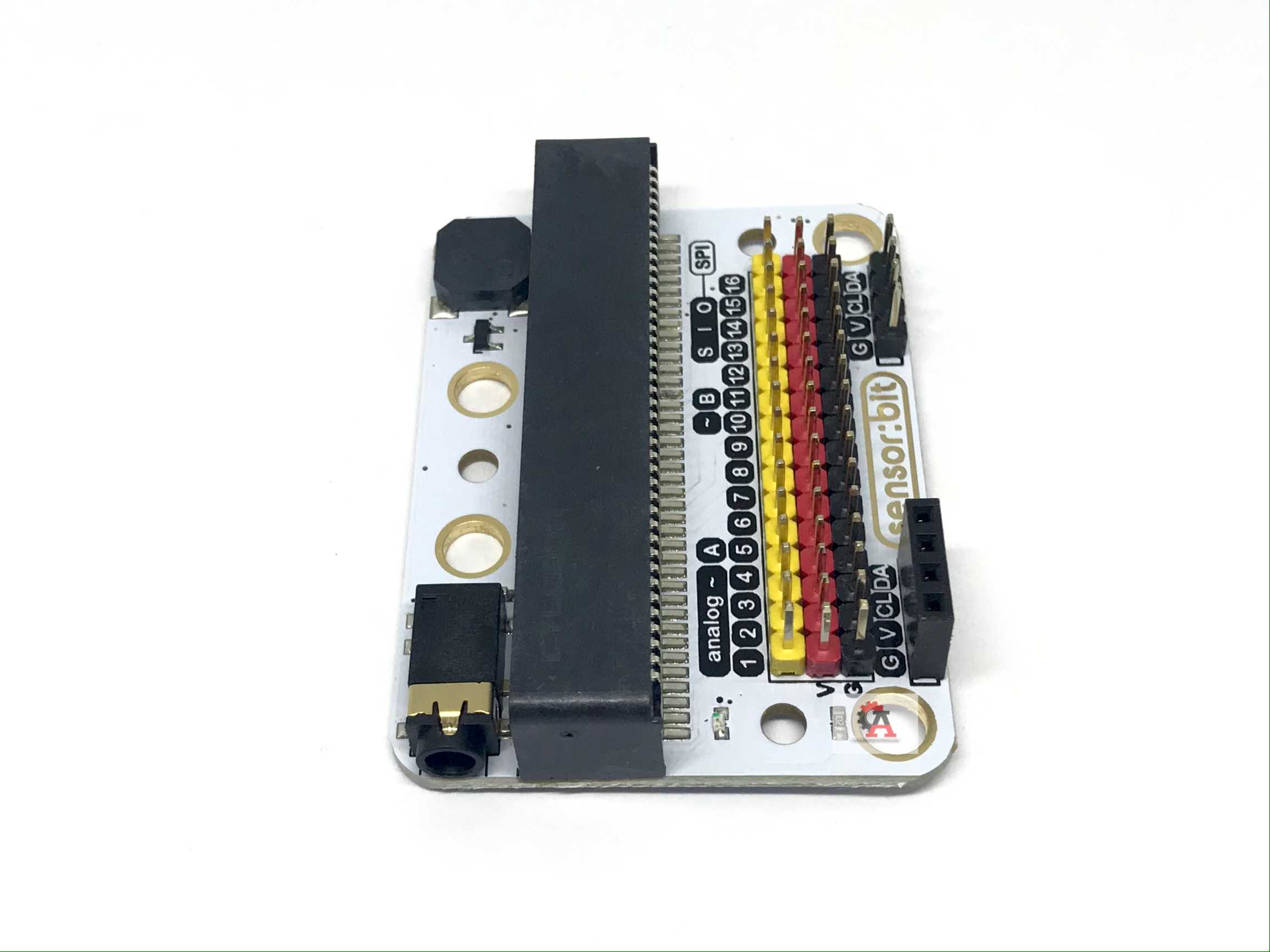

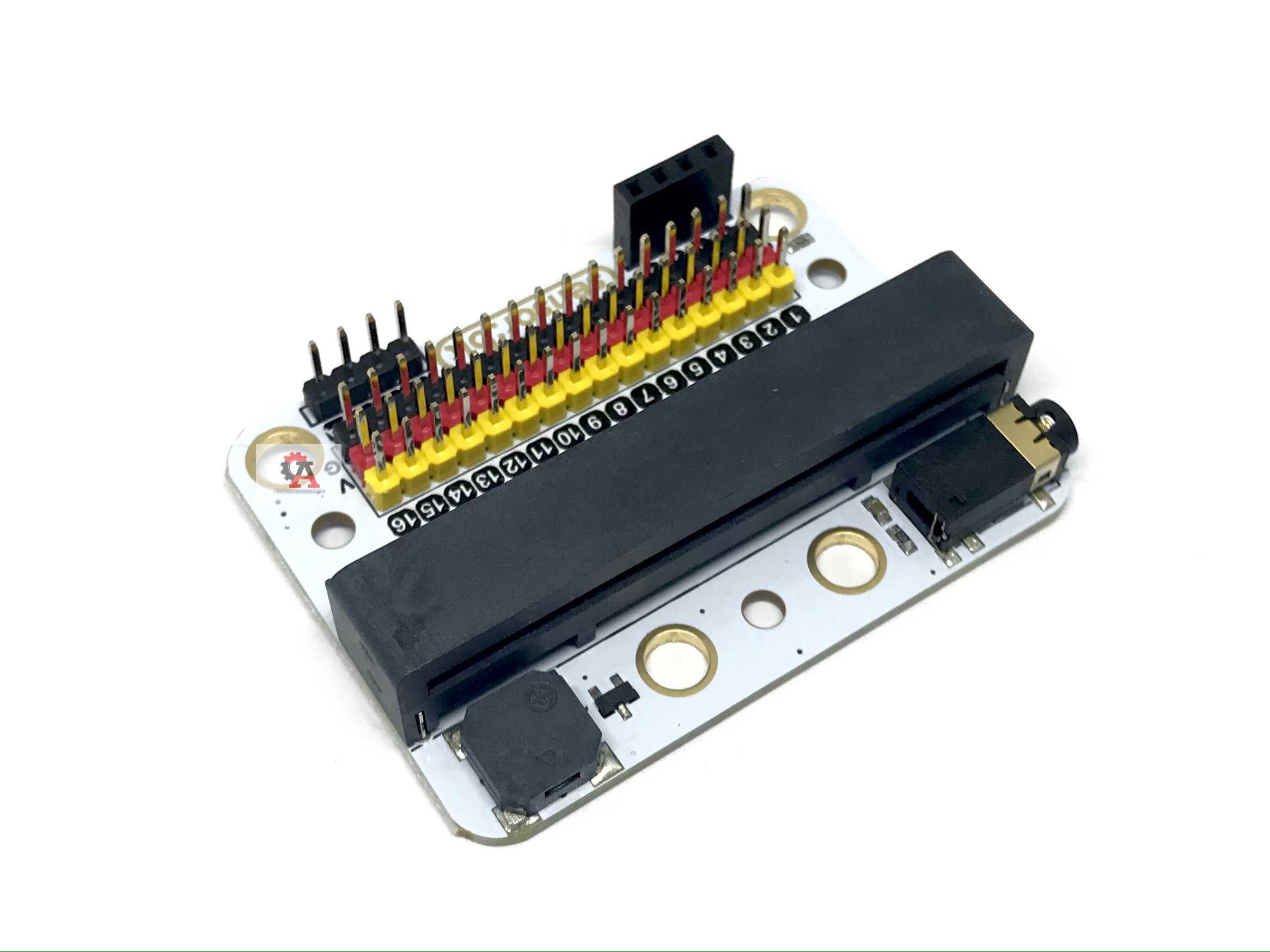

Elecfreaks Sensor bit for micro:bit บอร์ดขยายสำหรับไมโครบิต เป็นบอร์ดต่อขยายขา I/O ทำให้สามารถต่อใช้งานอุปกรณ์เสริมและเซนเซอร์ได้ง่ายขึ้น

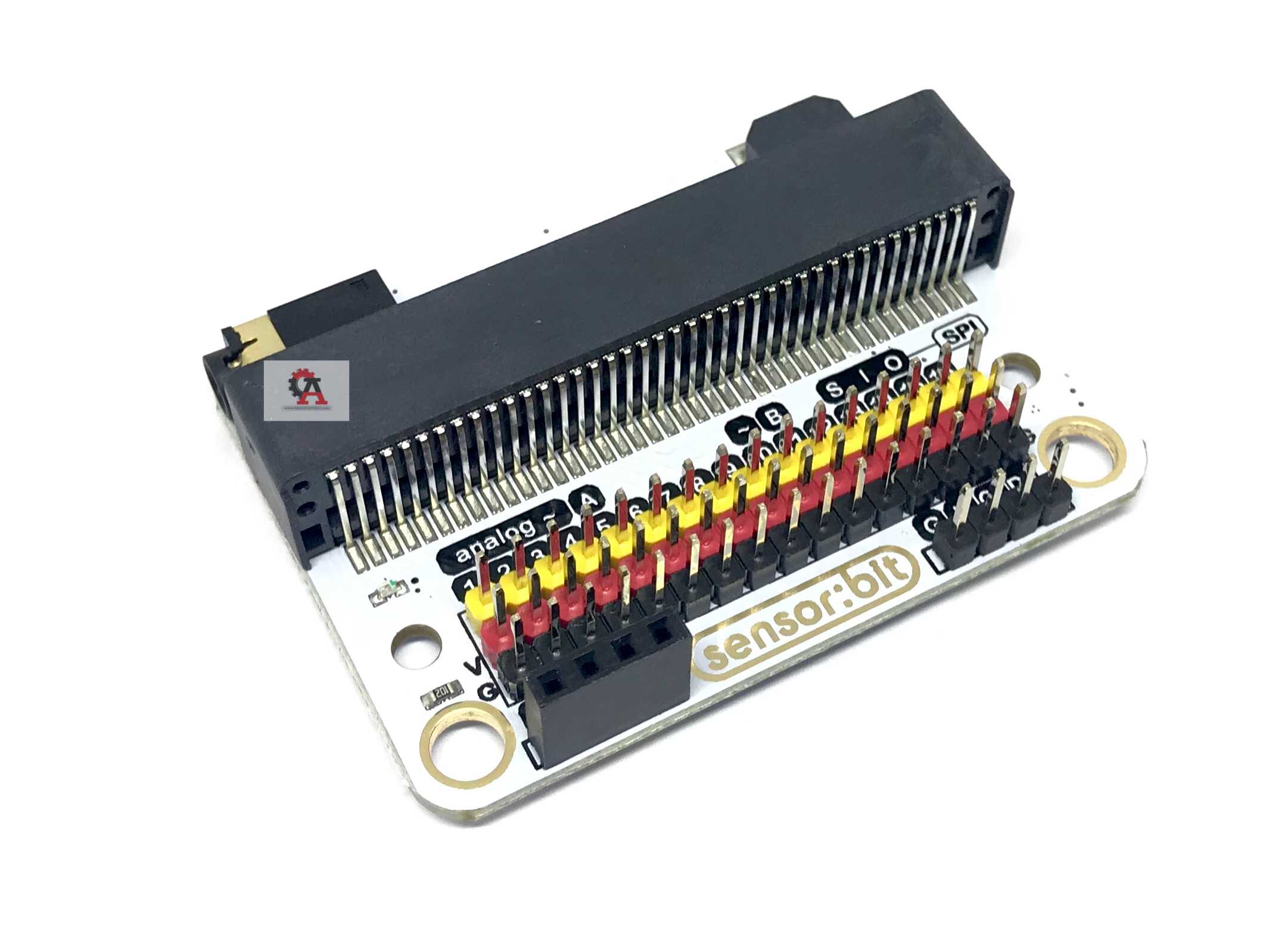

Sensor:bit is a breakout board based on micro:bit. It extends all of the available I/O with individual pin breakouts. With this board, you can connect various 3V electric components like LED lights, photocells, etc.

The board has an integrated buzzer and an audio jack, which allows you to hear music from the buzzer or with headphones.

Features :

• Extends most I/O ports on micro:bit by GVS pins.
• Independent outs for I2C interface. Enable to plug in I2C components like OLED, BME280, etc..
• Integrated buzzer and audio jack.
• Support Lego mounting holes.
• Marks each I/O port with silk printing.

Definition of Pins

Introduction of Major Components

Audio Jack

Headphone is controlled by P0 port. Plug in your headphone, the buzzer will disconnect automatically.

Buzzer

The buzzer is controlled by P0 port. Plug in your headphone, the buzzer will disconnect automatically.

16 Channel Standard GVS Port

This is a standard GVS interface with 16 channels.

I2C Port

This is a group of I2C female headers, which can connect with an OLED module directly.

This is a group of I2C male headers.

 Quick Start

Hardware Assembly

Plug your micro:bit into sensor:bit.

Software

Navigate to the programming interface of Makecode online editor. Write your code to make the buzzer on sensor:bit play music.

You can see the whole program from the link here: https://makecode.microbit.org/_3At2iE5Ue3XK

Result

Press button A on micro:bit, the buzzer starts to play music. Plug in your headphone to sensor:bit, the buzzer stops playing music, and you can hear the music through your headphone.

Parameters

Dimension

Documents :

Sensor:bit Guide
