รหัสสินค้า | AT02909 |
หมวดหมู่ | วัดสภาพอากาศ |
ราคา | 6,990.00 บาท |
ลงสินค้า | 26 เม.ย. 2564 |
อัพเดทล่าสุด | 27 มี.ค. 2567 |

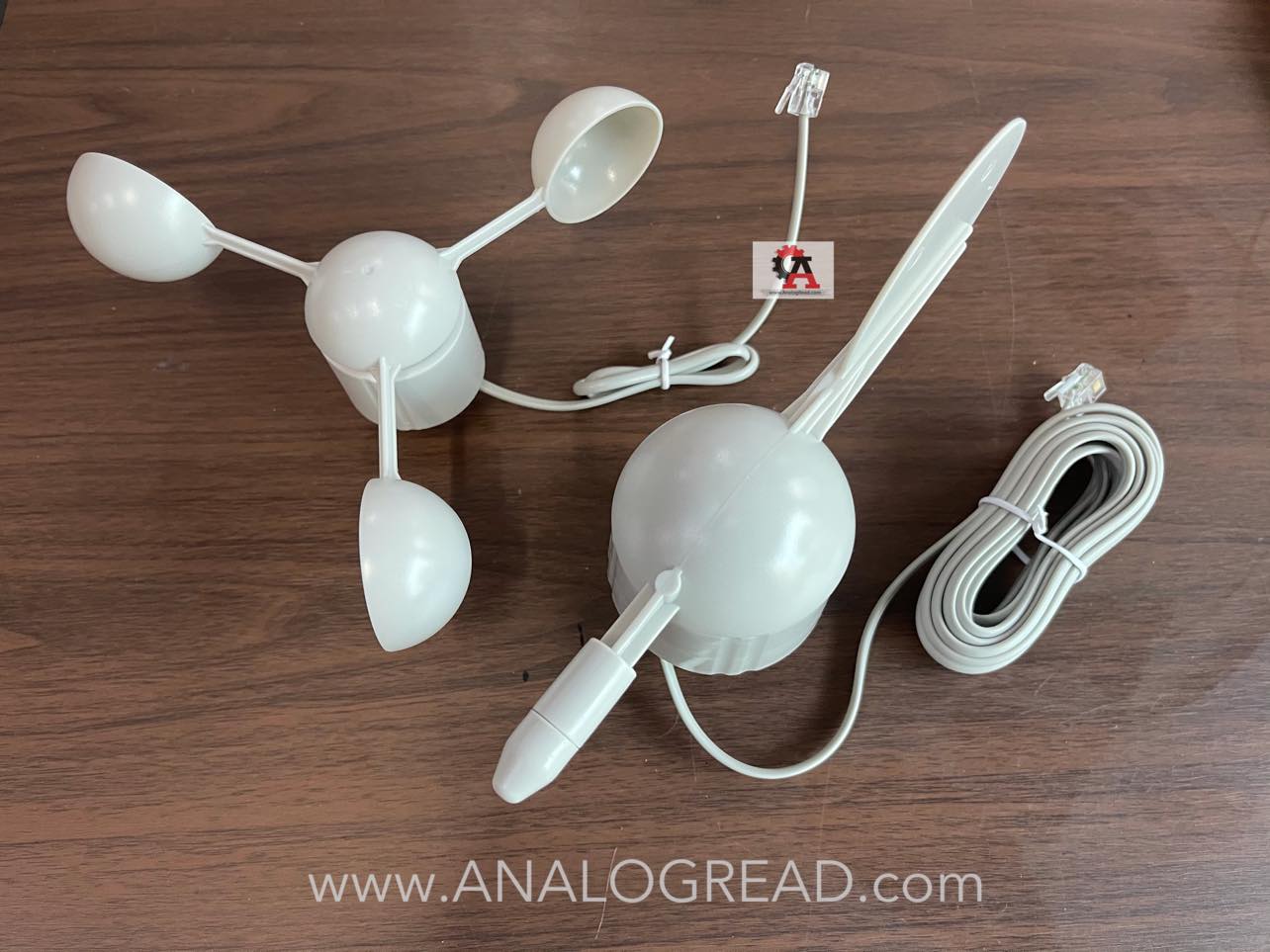

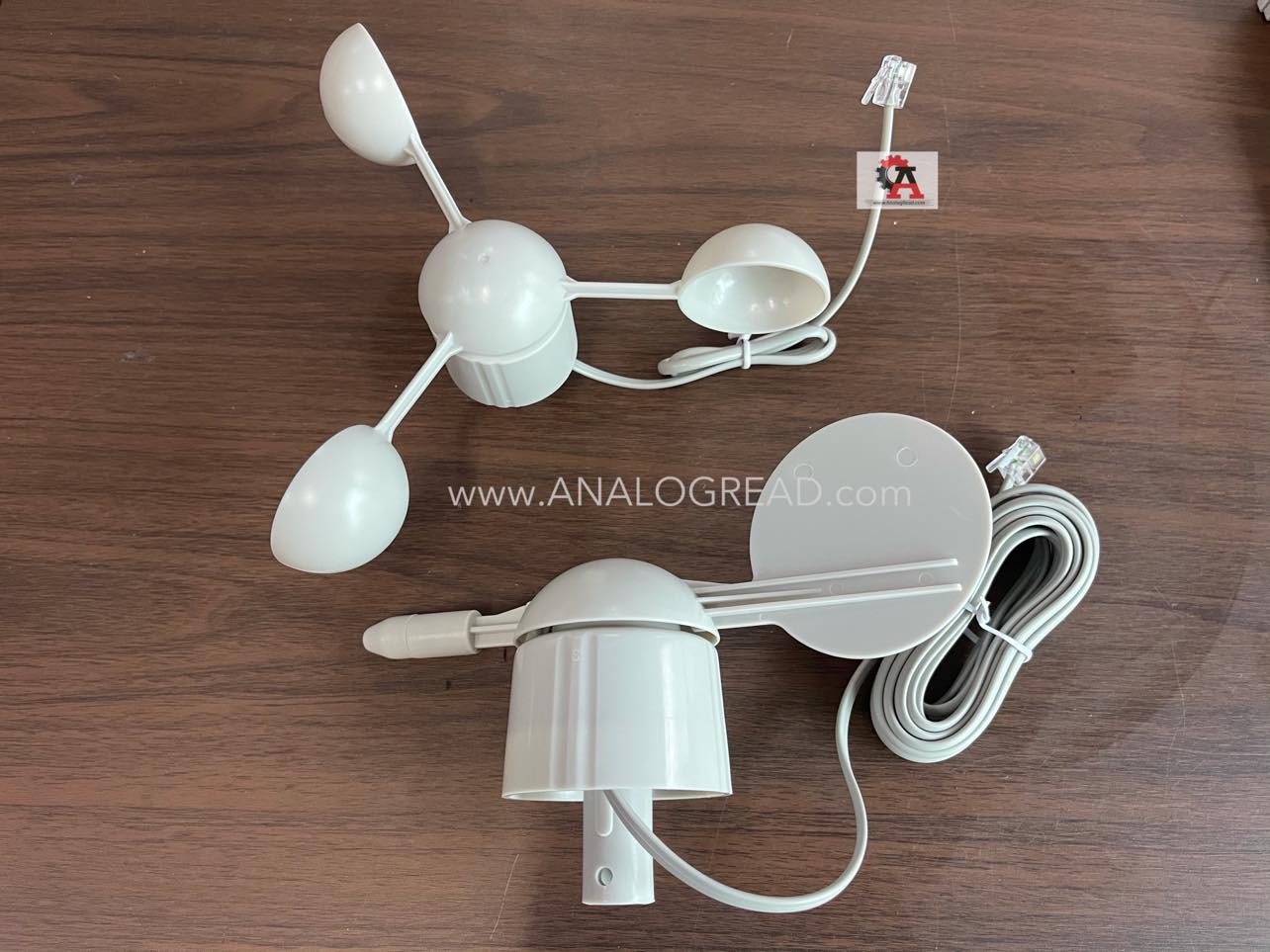

สถานีวัดอากาศ Weather Station Kit with Anemometer/Wind Vane/Rain Bucket ประกอบไปด้วย 6 เซนเซอร์ คือ เซนเซอร์ความเร็วลม เซนเซอร์ทิศทางลม เซนเซอร์ปริมาณน้ำฝน เซนเซอร์ความดันบรรยากาศ เซนเซอร์อุณหภูมิ และเซนเซอร์ความชื้น ใช้ไฟเลี้ยง 5V สามารถใช้ได้ทั้งบอร์ด Arduino Esp8266 และ Esp32
Ever want to build your own weather station? This weather station kit includess anemometer, wind vaneRain and rain bucket. The serial communication method provides good compatibility and makes it easy to use. Together with other components, this anemometer can be widely used in measuring wind /rain in areas such as engineering, railways, docks, power plants, meteorological, cableway, environment study, agriculture, energy monitoring, health study with corresponding signal output. Also, it is compatible with Arduino device.
Version Update 2016/3/28: Upgrade the Temperature and Humidity sensor that the range and accuracy were improved.
image:SEN0186_Data_interface updated.JPG|Weather Station board, updated from Mar.2016 image:SEN0186_Data_interface.png|Weather Station board, older version
There are two data ports on the board
c000s000g000t086r000p000h53b10020
It outputs 37 bytes per second, including the end CR/LF.
Data Parser:
NOTE : The board will make a hardware self-check before it works, it will output “...” when it doesn't detect the related devices. For example, If the temperature & humidity sensor and barometer are not installed or broken, it will output:'''c000s000g000t...r000p000h..b.....''' |
STU LED: flash with sensor status Link LED: flash with Data output
Please unplug the cable on the TX&RX interface, or it will interfere with the sketch uploading.
char databuffer[35];
double temp;
void getBuffer() //Get weather status data
{
int index;
for (index = 0;index < 35;index ++)
{
if(Serial.available())
{
databuffer[index] = Serial.read();
if (databuffer[0] != 'c')
{
index = -1;
}
}
else
{
index --;
}
}
}
int transCharToInt(char *_buffer,int _start,int _stop) //char to int)
{
int _index;
int result = 0;
int num = _stop - _start + 1;
int _temp[num];
for (_index = _start;_index <= _stop;_index ++)
{
_temp[_index - _start] = _buffer[_index] - '0';
result = 10*result + _temp[_index - _start];
}
return result;
}
int WindDirection() //Wind Direction
{
return transCharToInt(databuffer,1,3);
}
float WindSpeedAverage() //air Speed (1 minute)
{
temp = 0.44704 * transCharToInt(databuffer,5,7);
return temp;
}
float WindSpeedMax() //Max air speed (5 minutes)
{
temp = 0.44704 * transCharToInt(databuffer,9,11);
return temp;
}
float Temperature() //Temperature ("C")
{
temp = (transCharToInt(databuffer,13,15) - 32.00) * 5.00 / 9.00;
return temp;
}
float RainfallOneHour() //Rainfall (1 hour)
{
temp = transCharToInt(databuffer,17,19) * 25.40 * 0.01;
return temp;
}
float RainfallOneDay() //Rainfall (24 hours)
{
temp = transCharToInt(databuffer,21,23) * 25.40 * 0.01;
return temp;
}
int Humidity() //Humidity
{
return transCharToInt(databuffer,25,26);
}
float BarPressure() //Barometric Pressure
{
temp = transCharToInt(databuffer,28,32);
return temp / 10.00;
}
void setup()
{
Serial.begin(9600);
}
void loop()
{
getBuffer(); //Begin!
Serial.print("Wind Direction: ");
Serial.print(WindDirection());
Serial.println(" ");
Serial.print("Average Wind Speed (One Minute): ");
Serial.print(WindSpeedAverage());
Serial.println("m/s ");
Serial.print("Max Wind Speed (Five Minutes): ");
Serial.print(WindSpeedMax());
Serial.println("m/s");
Serial.print("Rain Fall (One Hour): ");
Serial.print(RainfallOneHour());
Serial.println("mm ");
Serial.print("Rain Fall (24 Hour): ");
Serial.print(RainfallOneDay());
Serial.println("mm");
Serial.print("Temperature: ");
Serial.print(Temperature());
Serial.println("C ");
Serial.print("Humidity: ");
Serial.print(Humidity());
Serial.println("% ");
Serial.print("Barometric Pressure: ");
Serial.print(BarPressure());
Serial.println("hPa");
Serial.println("");
Serial.println("");
}
