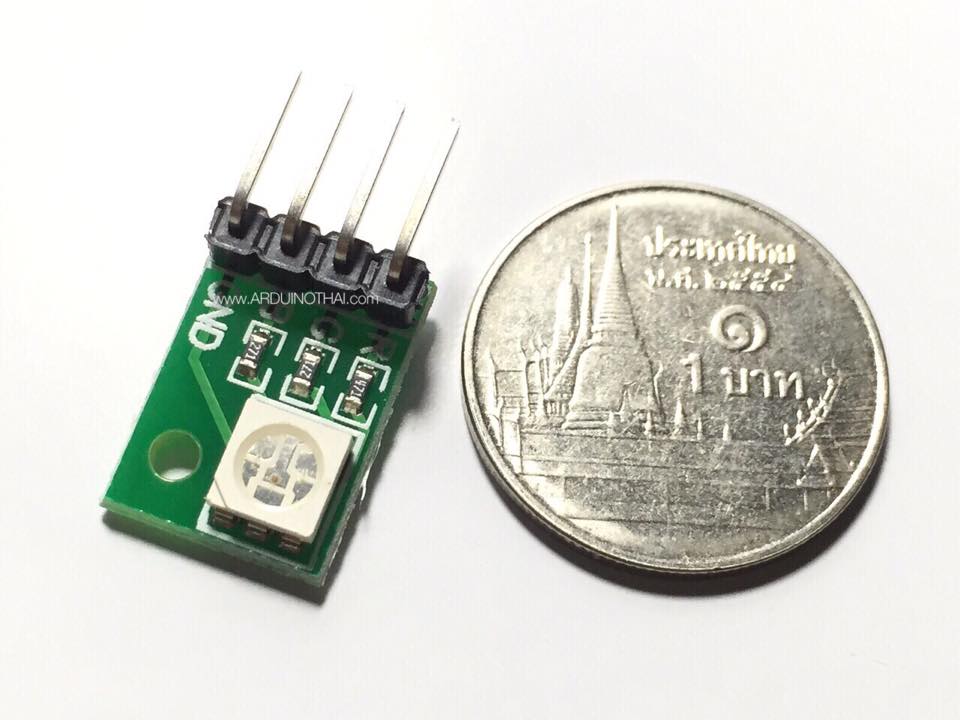

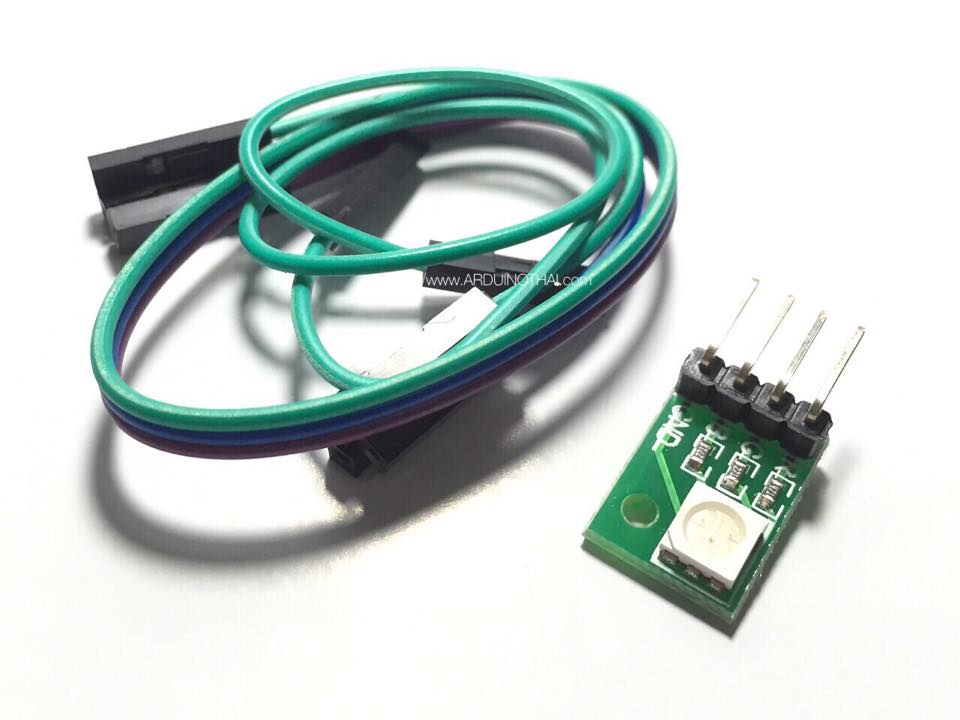

RGB 3 colors LEDs module (SMD) เป็น Module LED แบบ 3 สี สามารถผสมสีกันได้โดยใช้สัญญาณ PWM

Features :

The use of plug-in full-color LED

RGB trichromatic limiting resistor to prevent burn out

Through the PWM adjusting three primary colors can be mixed to obtain different colors

With a variety of single-chip interface

The working voltage: 5V

Description :

"RGB LED module consists of a plug-in full color LED made by R,G,B three pin.

PWM voltage input can be adjusted section three primary colors (red/blue/green) strength in order to achieve full color mixing effect.

Control of the module with the Arduino can be achieved cool lighting effects.

LED drive mode: common cathode driver

โค้ดตัวอย่าง

int redpin = 11; // select the pin for the red LED

int bluepin = 10; // select the pin for the blue LED

int greenpin = 9 ;// select the pin for the green LED

int val;

void setup()

{

  pinMode(redpin, OUTPUT);

  pinMode(bluepin, OUTPUT);

  pinMode(greenpin, OUTPUT);

  Serial.begin (9600);

}

void loop()

{

  for (val = 255; val>0; val--)

  {

    analogWrite(11, val);

    analogWrite(10, 255-val);

    analogWrite(9, 128-val);

    delay(1);

  }

  for (val = 0; val <255; val++)

  {

    analogWrite(11, val);

    analogWrite(10, 255-val);

    analogWrite(9, 128-val);

    delay (1);

  }

  Serial.println(val, DEC);

}
