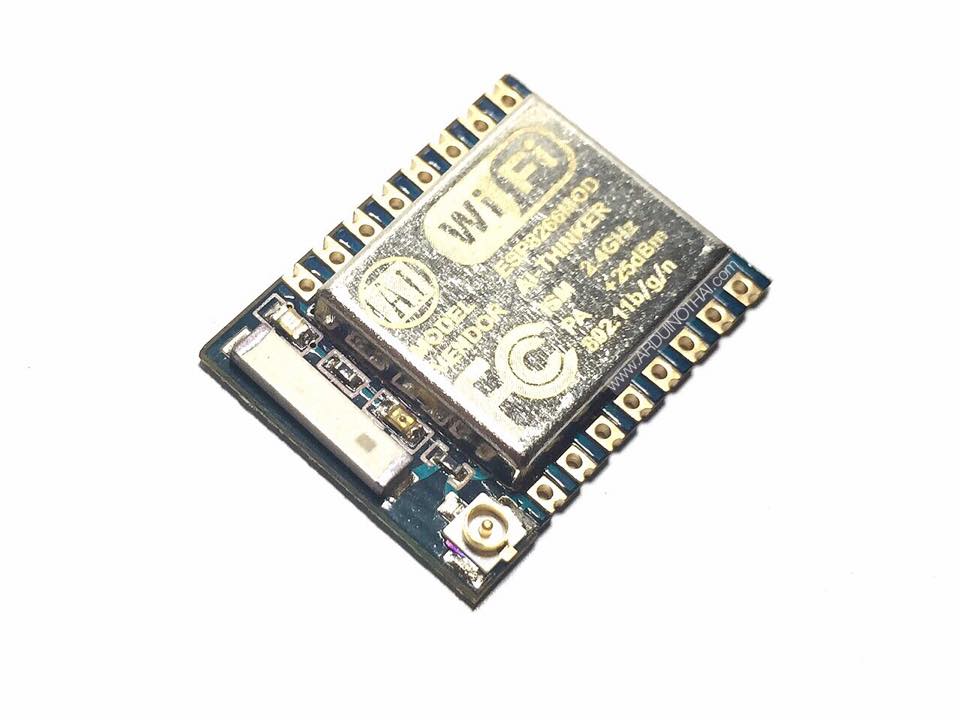

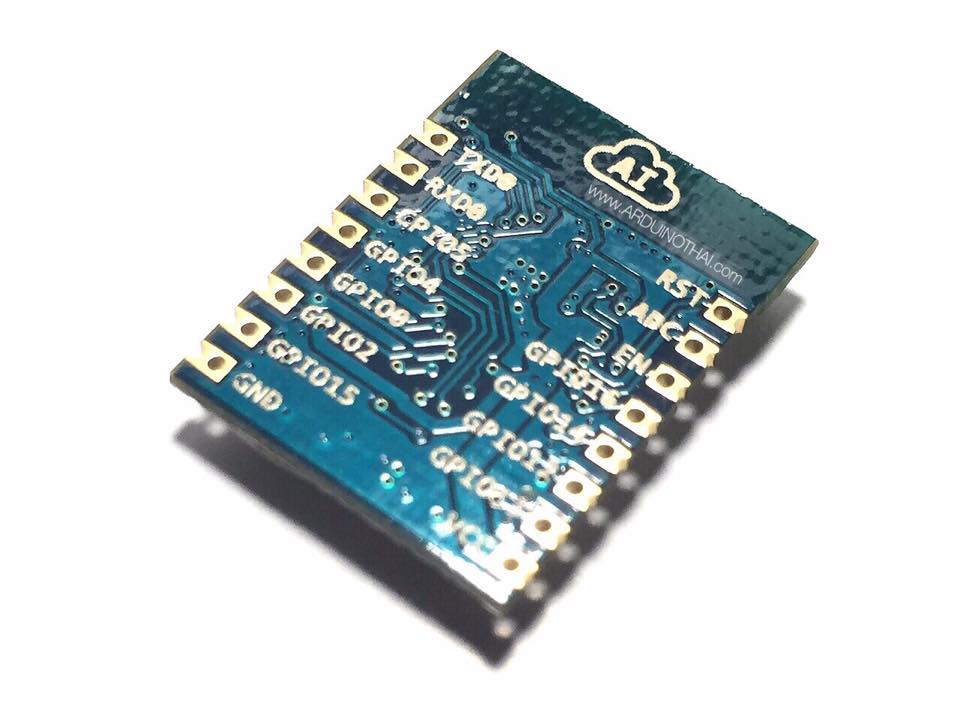

ESP8266 WiFi Module (ESP-07) เป็นบอร์ด ESP8266 ที่มามารถต่อเสาร์สัญญาณภายนอกเพิ่มได้ ทำให้ตัวอุปกรณ์รับสัญญาณได้ดีขึ้น

The ESP8266 is a highly integrated chip designed for the needs of an increasingly connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host applications or offload all Wi-Fi networking functions from another application processor.

The ESP8266 has powerful on-board processing and storage capabilities that allow it to be used with sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry. The entire solution, including the module, is designed to occupy minimal PCB area.

Features :

SDIO 2.0, SPI, UART

32-pin QFN package

Integrated RF switch, balun, 24dBm PA, DCXO, and PMU

Integrated RISC processor, on-chip memory and external memory interfaces

Integrated MAC/baseband processors

Quality of Service management

I2S interface for high fidelity audio applications

On-chip low-dropout linear regulators for all internal supplies

Proprietary spurious-free clock generation architecture

Integrated WEP, TKIP, AES, and WAPI engine

Specification:

802.11 b/g/n

Wi-Fi Direct (P2P), soft-AP

Integrated TCP/IP protocol stack

Integrated TR switch, balun, LNA, power amplifier and matching network

Integrated PLLs, regulators, DCXO and power management units

+19.5dBm output power in 802.11b mode

Power down leakage current of <10uA

Integrated low power 32-bit CPU could be used as application processor

SDIO 1.1/2.0, SPI, UART

STBC, 1×1 MIMO, 2×1 MIMO

A-MPDU & A-MSDU aggregation & 0.4ms guard interval

Wake up and transmit packets in < 2ms

Standby power consumption of < 1.0mW (DTIM3)
