Description :

• GPS Chip parameters:
• Receiver type 72-channel u-blox M8 engine
• GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
• SBAS L1 C/A: WAAS, EGNOS, MSAS
• Galileo-ready E1B/C (NEO-M8N)
• Nav. update rate1 Single GNSS: up to 18 HZ
• Concurrent GNSS: up to 10 Hz
• Position accuracy2 2.0 m CEP
• Acquisition2 Cold starts: 26 s
• Aided starts: 2 s
• Reacquisition: 1.5 s
• Sensitivity2 Tracking & Nav: -167 dBm
• Cold starts: -148 dBm
• Hot starts: -156 dBm
• Assistance AssistNow GNSS Online
• AssistNow GNSS Offline (up to 35 days)3
• AssistNow Autonomous (up to 6 days)
• OMA SUPL & 3GPP compliant
• Oscillator TCXO (NEO-M8N/Q),
• Crystal (NEO-M8M)
• RTC crystal Built-In
• Noise figure On-chip LNA (NEO-M8M). Extra LNA for
• lowest noise figure (NEO-M8N/Q)
• Anti jamming Active CW detection and removal. Extra
• onboard SAW band pass filter (NEO-M8N/Q)
• Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
• Supported antennas Active and passive
• Odometer Travelled distance
• Data-logger For position, velocity, and time (NEO-M8N)
• Operating temp. -40° C to 85° C
• Storage temp. -40° C to 85° C (NEO-M8N/Q)
• -40° C to 105° C (NEO-M8M)
• RoHS compliant (lead-free)
• Qualification according to ISO 16750
• Manufactured and fully tested in ISO/TS 16949 certified production sites
• Uses u-blox M8 chips qualified according to AEC-Q100
• Supply voltage 1.65 V to 3.6 V (NEO-M8M)
• 2.7 V to 3.6 V (NEO-M8N/Q)
• Power consumption4 23 mA @ 3.0 V (continuous)
• 5 mA @ 3.0 V Power Save Mode
• (1 Hz, GPS mode only)
• Backup Supply 1.4 to 3.6 V

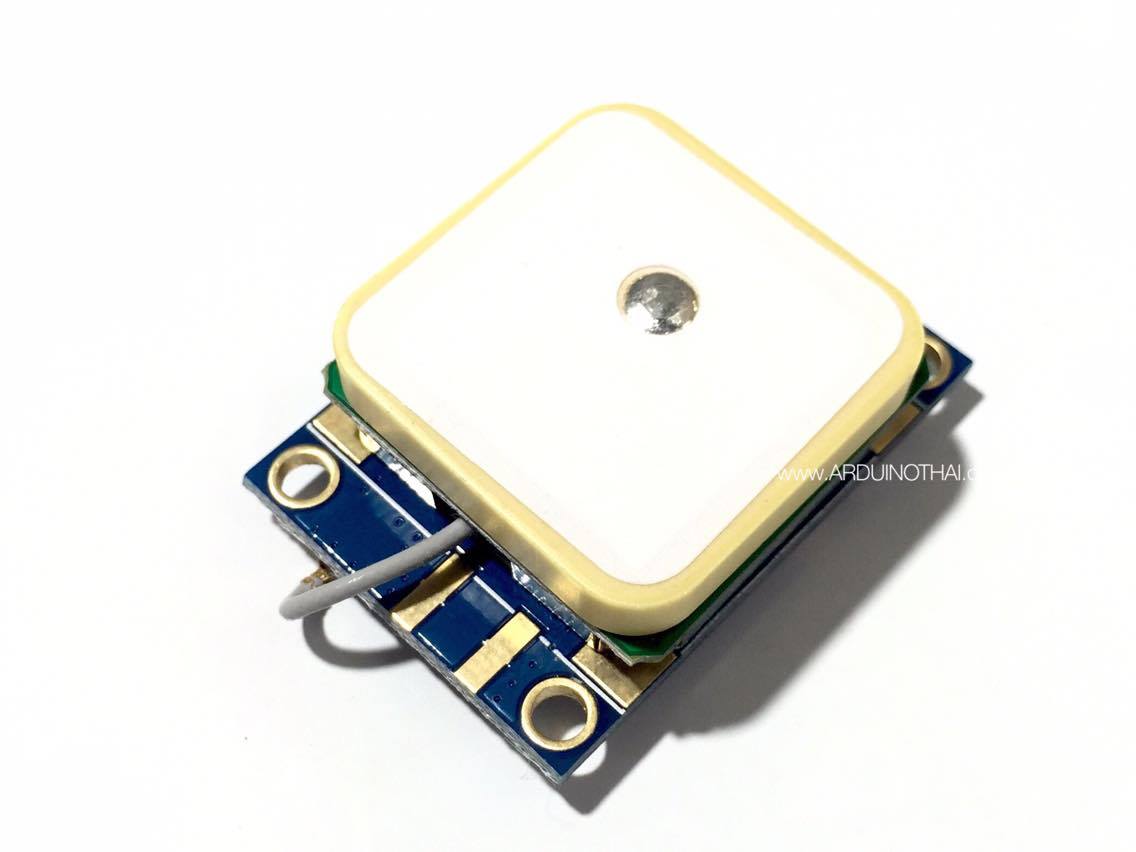

• NEO-M8N-0 u-blox M8 Concurrent GNSS LCC Module,
• TCXO, flash, SAW, LNA,
• Timepulse Configurable 0.25 Hz to 10 MHz
• Antenna size: 25*25mm
• Module size: 25*35mm
